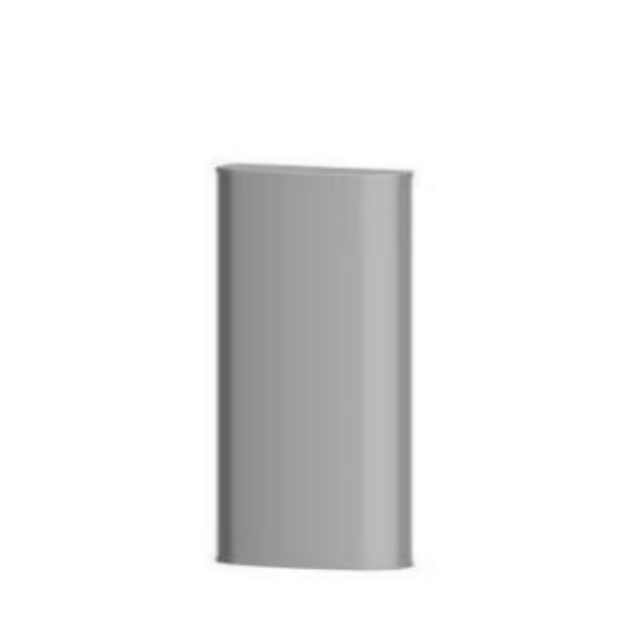

1710-2690MHz 3-beam 6-port panel antenna for base station

① Wideband Coverage and Multi-Band Compatibility

Supports the full 1710-2690MHz frequency band, including B1/B2/B3, making it suitable for 4G/LTE and 5G networks. This single device offers multiple uses, reducing deployment costs.

② High Gain and Precise Beam Control

Gain reaches 21±2 dBi, with both horizontal and vertical beamwidths of 22±2° and a front-to-back ratio of ≥25 dB, ensuring focused signal transmission and longer, more stable coverage.

③ Electrically Adjustable Downtilt + Mechanical Downtilt

Supports 2-10° electrical downtilt and 0-15° mechanical downtilt, allowing for flexible coverage adjustment, optimizing network performance, and reducing interference.

④ Highly Protective and Durable Design

Equipped with a high-quality fiberglass radome, it operates in a temperature range of -50°C to 65°C and withstands wind loads of up to 216 km/h, making it suitable for extreme outdoor environments.

⑤ Intelligent Interface and High Compatibility

Built-in AISG 2.0 SRET interface supports remote electrical adjustment; six 4.3-10 female ports with ≥25 dB isolation are compatible with mainstream base station equipment.

Application Scenarios

Urban and Suburban Base Station Deployment: Suitable for signal coverage and capacity enhancement in high-density user areas.

Rural and Remote Area Communications: High gain ensures long-distance signal transmission.

Indoor Distribution System (DAS): Serves as a signal source antenna in large venues such as shopping malls, airports, and stadiums.

Network Expansion and Upgrade: Supports multiple frequency bands, facilitating a smooth transition from 4G to 5G.

Temporary Communication Site: Ideal for emergency communications, temporary coverage during events, and other scenarios.

FAQ

Q: What network bands does this antenna support?

A: It supports the full 1710-2690 MHz frequency band, covering 4G/LTE and select 5G bands, and is compatible with multiple communication bands such as B1/B2/B3.

Q: What is the antenna gain? Is it adjustable?

A: The gain is 21±2 dBi and is not adjustable. However, the downtilt angle can be electrically adjusted (2-10°) to optimize the signal coverage angle.

Q: Does the antenna support remote control?

A: Yes, it has a built-in AISG 2.0 SRET interface, which supports remote electrical adjustment and monitoring.

Q: How is the antenna mounted?

A: It can be mounted on a 50-115 mm Φ pole using the included mounting hardware (model 51AA). The downtilt angle is mechanically adjustable from 0-15°.

Q: Is the antenna lightning-proof?

A: Yes, it has DC grounding for lightning protection, enhancing safety for outdoor use.

Q: What are the connector types and quantity?

A: There are six 4.3-10 female connectors located on the bottom of the antenna.
