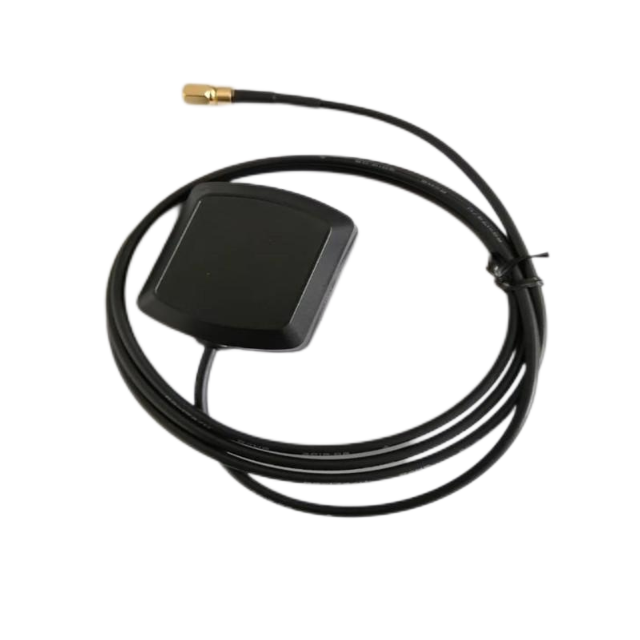

GPSGlonass Antenna |
|
|
GL-DY001 |
|
|
Electrical Index |
|
|
Frequency-MHz |
1575.42±1/1601-1610 |
|
VSWR |
＜1.5 |
|
Nominal Impedance-Ω |
50 |
|
Polarization |
RHCP, |
|
Axial Ratio |
3dB(max) |
|
LNA Gain |
28±2dB |
|
Noise Figure |
＜1.5 |
|
Supply Voltage |
2.2-5V DC |
|
Current Consumption |
5-15mA |
|
Mechanical Index |
|
|
Cable Length |
RG174,5m |
|
Connector |
Fakra C blue |
|
Antenna Dimension-mm |
49.4*39.3*14.9 |
|
Installation Way |
Magnet or Adhesive |
|
Ingress Protection |
IP65~IP67(exclude cable outlet) |
|
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
Environmentally Friendly |
ROHS Compliant |
|
Temperature-℃ |
-40～＋85 |
|
Humidity-﹪ |
5～95 |
GPS/GNSS external active antenna GL-DY001 is a high-performance antenna designed to enhance signal reception for precise positioning and navigation applications. Its compact size and durable construction make it suitable for various outdoor environments. The antenna features advanced technology to ensure reliable and accurate signal acquisition, even in challenging conditions. With easy installation and compatibility with a wide range of devices, the GL-DY001 antenna is a versatile solution for improving the performance of GPS/GNSS systems. Whether used in automotive, marine, or aviation applications, this antenna provides reliable signal reception for optimal positioning accuracy.
