P/N |
GPS Internal Antenna |
|
|
M/N |
GL046 |
|
|
Electrical Index |
||
|
Center Frequency-MHz |
1575.42 ±0.5 |
|
|
VSWR |
≤1.5 |
|
|
LNA Gain-dBi |
28±2 |
|
|
Nominal Impedance-Ω |
50 |
|
|
Polarization |
RHCP |
|
|
Supply Voltage |
2.2~5V DC |
|
|
Noise Figure |
1.1dB |
|
|
Max. Power-W |
50 |
|
|
Current Consumption |
10mA |
|
|
Connector |
IPEX |
|
|
Mechanical Index |
||
|
Cable Length |
RG1.13 100mm |
|
|
Antenna Dimension-mm |
25*25*7 |
|
|
Environmentally |
ROHS Compliant |
|
|
Temperature-℃ |
-40～＋85 |
|
|
Humidity-﹪ |
5～75 |
|

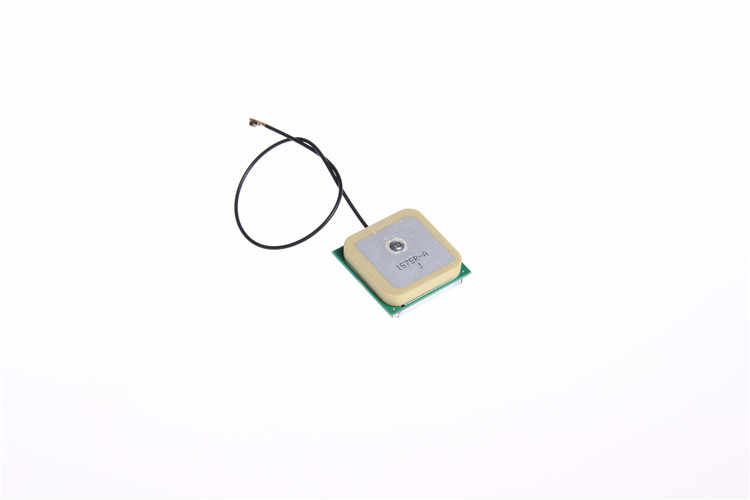

GPS ceramic internal antenna for unlocking accuracy and reliability. The antenna is designed for a variety of applications, including navigation, autonomous vehicles, agriculture and measurement systems. It has been carefully engineered to provide accurate location information, ensuring superior performance in the most demanding environments.
Our GPS ceramic internal antennas are manufactured with exceptional precision to ensure excellent signal reception and stability. Its rugged construction and innovative design make it ideal for commercial and industrial uses, where reliable GPS functionality is critical.
In addition, we offer OEM and ODM services that allow you to customize your products to your specific needs.
Choose our GPS ceramic internal antenna for a solution that combines high quality and precision to meet the changing needs of your application.
