Combo Antennas

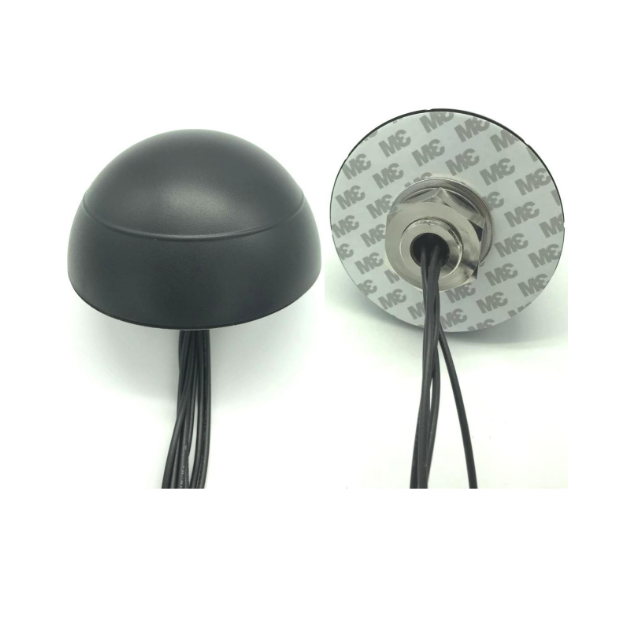

7 in 1 Wifi And Lte Combo Antenna 604

Frequency Range:1575.42~1610MHz
Gain:3dbi
Polarization:Linear
Connector:SMA or others
Product description: The WiFi and LTE combo antenna with 7 cables is a versatile solution for enhancing connectivity in various settings. Whether you are in a busy office environment or a remote location, this antenna pro
INQUIRY

Item		Specifications
GPS&GLONASS Antenna	Frequency Range	1575.42~1610MHz
	Polarization	RHCP
	Impedance	50Ω
	Dimension	25256mm
	Gain	28±2dB
	Noise Figure	≤1.5dB
	Supply Voltage	3~5V DC
	Current Consumption	＜15mA
	V.S.W.R	＜2.0
LTE Antenna MIMO	Frequency Range	698~960MHz/1710~2690MHz
	V.S.W.R	＜3.0
	Polarization	Linear
	Gain	3dBi
	Impedance	50Ω
WIFI Antenna MIMO×4	Frequency Range	2400~2483.5MHz/4900~5825MHz
	V.S.W.R	＜2.5
	Polarization	Linear
	Gain	2dBi
	Impedance	50Ω
Mechanical	Cable	RG174
	Connector	SMA or others
	Radome Material	ABS
	Mounting Method	Screw
Environmental	Operating Temperature	-40℃~+85℃
	Relative Humidity	Up to 95%
	Ingress Protection	IP67 (exclude cable outlet)
	Vibration	10 to 55Hz with 1.5mm amplitude 2hours
	Environmentally Friendly	ROHS Compliant

The WiFi and LTE Combo Antenna with 7 cables is a versatile solution for enhancing connectivity in various settings. Whether you are in a busy office environment or a remote location, this antenna provides reliable and high-speed internet access. With its multiple cables, it ensures seamless integration with different devices and networks. The antenna's design is optimized to capture and transmit signals efficiently, resulting in improved signal strength and stability. This makes it an ideal choice for businesses, homes, and even outdoor activities. Stay connected effortlessly with the WiFi and LTE combo antenna, and enjoy uninterrupted internet access wherever you go.
