Electrical Specifications |
|||
|
Frequency Range (MHz) |
200-270 |
||
|
Horizontal beam width(°) |
360 |
||
|
Vertical beam width (°) |
60 |
||
|
Gain (dBi) |
1 |
||
|
Polarization |
Vertical |
||
|
VSWR |
≤2.0 |
||
|
Maximum input power (W) |
100 |
||
|
Impedance (Ω) |
50 |
||
|
Mechanical Specifications |
|||
|
Dimensions (mm) |
Φ20*400 |
||
|
Antenna weight (Kg) |
0.2 |
||
|
Radome material |
fiberglass |
||
|
Radome color |
grey |
||
|
Input connector type |
N-K |
||
|
Environmental indicators |
|||
|
Usage scenarios |
Outdoor |
||
|
Operating temperature (℃) |
-40 to +70 |
||
|
Humidity range (%) |
5 to 95 |
||
|
Maximum wind speed (km/h) |
200 |
||
|
Installing the Hardware |
|||
|
Installation |
Connector fixing |
||

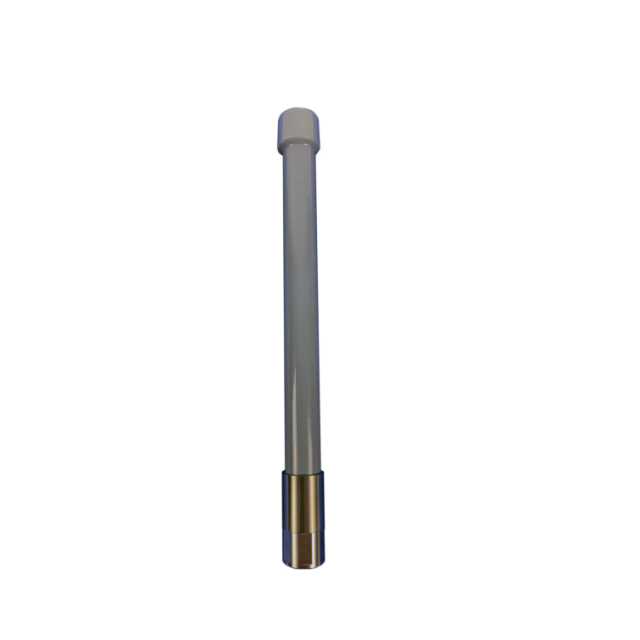

Product Introduction
1. Omnidirectional Signal Coverage
A 360° horizontal beam width ensures signal coverage without blind spots, suitable for wide-area communications.
2. Highly Durable Fiberglass Housing
Made of high-strength fiberglass, it is corrosion-resistant and UV-resistant, making it suitable for long-term outdoor use.
3. Wide Operating Temperature Range
Supports extreme operating temperatures from -40°C to +70°C, adapting to various climate conditions.
4. High Power Handling
A maximum input power of 100W makes it suitable for high-power communication systems, ensuring stability and reliability.
5. Low VSWR Design
VSWR ≤ 2.0 ensures high signal transmission efficiency and minimizes energy loss.
Applications
Outdoor communication base stations
Marine and maritime communication systems
Remote monitoring and data transmission
Emergency rescue communication equipment
Industrial remote control and telemetry systems
FAQ
Q: What environments is this antenna suitable for?
A: It is suitable for outdoor environments, supporting temperatures from -40°C to +70°C and humidity levels of 5%-95%.
Q: How do I mount the antenna?
A: It is fixed and mounted using an N-K type connector.
Q: Is the antenna waterproof?
A: The fiberglass housing is moisture- and weather-resistant, making it suitable for use in humid outdoor environments.
Q: What is the maximum supported power?
A: The maximum input power is 100W.
Q: What is the antenna gain?
A: The gain is 1dBi.
