USD0.39/PC

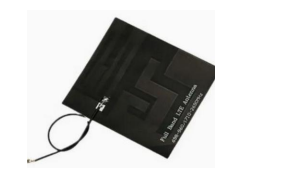

GLFPC02 is an LTE FPC internal antenna covering 698–960 and 1710–2700MHz with 2.15dBi gain. Vertical polarization, 50Ω impedance, VSWR ≤2.0. UFL connector with RG1.13/RG1.37 120mm cable, size 68×68×0.2mm.
GLFPC02 is an LTE FPC internal antenna designed for embedded devices requiring coverage in 698–960MHz and 1710–2700MHz bands. It uses a UFL connector and a 120mm cable for compact integration.
Frequency range: 698–960 / 1710–2700MHz
Gain: 2.15dBi
VSWR: ≤2.0
Connector: UFL
Dimensions: 68×68×0.2mm
| Item | Specification |
|---|---|
| Frequency Range (MHz) | 698–960 / 1710–2700 |
| Gain (dBi) | 2.15 |
| Polarization | Vertical |
| Impedance (Ω) | 50 |
| Max Power (W) | 50 |
| VSWR | ≤2.0 |
| Connector | UFL |
| Dimensions (mm) | 68×68×0.2 |
| Cable | RG1.13 / RG1.37, 120mm |
| Operating Temperature (°C) | -30 to +60 |
| Humidity (%) | 5 to 95 |
Embedded LTE devices and terminals
IoT products requiring 698–960/1710–2700MHz coverage
A: UFL connector (per datasheet).
A: 120mm cable (RG1.13/RG1.37) is listed.
A: 50W maximum power (per datasheet).
Inquiry: Contact us for quotation and integration support.
