USD0.39/PC

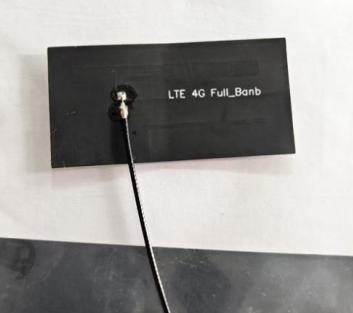

GL149 is a compact LTE FPC internal antenna covering 700–2700MHz with 3dBi gain. Vertical polarization, 50Ω impedance, VSWR ≤2.0. IPEX connector with RG1.13 100mm cable for LTE/4G devices and IoT terminals.
GL149 is an LTE FPC internal antenna designed for wideband cellular coverage from 700–2700MHz. It features vertical polarization, 50Ω impedance, and a compact footprint for embedded devices.
Frequency range: 700–2700MHz
Gain: 3dBi
VSWR: ≤2.0
Connector: IPEX
Compact size: 50×25×0.1mm
| Item | Specification |
|---|---|
| Frequency Range (MHz) | 700–2700 |
| Gain (dBi) | 3 |
| Polarization | Vertical |
| Impedance (Ω) | 50 |
| Max Power (W) | 50 |
| VSWR | ≤2.0 |
| Connector | IPEX |
| Dimensions (mm) | 50×25×0.1 |
| Cable | RG1.13 – 100mm |
| Operating Temperature (℃) | -30 to +60 |
| Humidity (%) | 5 to 95 |
LTE/4G cellular modules and terminals
IoT gateways, trackers, industrial devices
Embedded cellular connectivity designs
A: The connector type is IPEX (per datasheet).
A: Standard cable is RG1.13 with 100mm length.
A: Operating temperature is -30 to +60℃, humidity 5–95%.
Inquiry: Contact us to request a quotation and integration support.
