USD29.56/PC MOQ 100PC 3-4 weeks Lead time
GL0438XDK is an indoor omni ceiling mount antenna supporting 380–698/698–960/1710–2700/3300–4200MHz. 360° horizontal coverage, vertical polarization, max power 50W. N Female connector (or customized) with 20cm lead.
GL0438XDK (PN: 3023859) is an indoor omni Ceiling Mount Antenna designed for multi-band wireless coverage, supporting digital cluster and 2G/3G/4G/5G systems. It provides 360° horizontal coverage with vertical polarization.
Multi-band coverage: 380–4200MHz
Omni pattern: 360° horizontal beamwidth
Indoor ceiling mount, ABS radome
N Female connector (or customized), bottom exit
| Band | Frequency (MHz) | Gain (dBi) | Vertical Beamwidth (°) | VSWR |
|---|---|---|---|---|
| Band 1 | 380–698 | 2±1 | 85 | ≤2.2 |
| Band 2 | 698–960 | 3±1.5 | 60 | ≤2.2 |
| Band 3 | 1710–2700 | 6.5±1.5 | 45 | ≤2.0 |
| Band 4 | 3300–4200 | 5±1 | 35 | ≤2.0 |
| Item | Specification |
|---|---|
| Polarization | Vertical |
| Horizontal Beamwidth (°) | 360 |
| Impedance (Ω) | 50 |
| Maximum Power (W) | 50 |
| Connector | N Female or Customized |
| Lead Length (cm) | 20 or Customized |
| Connector Position | Bottom |
| Diameter / Height (mm) | Φ320×175 (±2) |
| Radome | ABS, White |
| Operating Temperature (℃) | -40 to +60 |
| Application | Indoor |
| Mounting | Ceiling Mount |
Drill a Φ18–Φ25 hole on the ceiling.

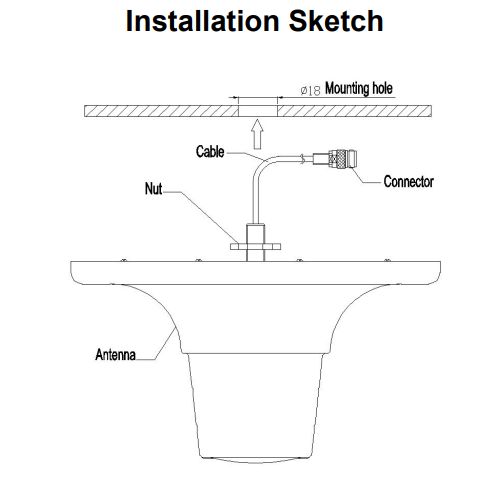

Install the antenna as shown in the installation sketch and tighten the bolts.
Connect the RF jumper to the antenna connector.
Indoor coverage / DAS systems
Digital cluster and 2G/3G/4G/5G indoor networks
A: Datasheet lists "N Female or Customized".
A: Yes, application is listed as Indoor with ceiling mounting.
A: Φ18–Φ25 hole is required (per installation sketch).
Inquiry: Contact us for quotation and connector/lead length options.
