GL009 - Compact GPS + LTE combo antenna with integrated GPS LNA for reliable GNSS positioning and wideband cellular connectivity.
GL009 integrates a GPS RHCP dielectric antenna (center frequency 1575.42MHz) with a low-noise amplifier (LNA gain 28±2dB) and a wideband LTE antenna covering 698~960MHz and 1710~2690MHz. Built with an ABS radome and RG174 cable, it supports connector options such as SMA / MCX / FAKRA (or others) and offers flexible mounting by adhesive or magnet. The antenna is rated IP66 and designed for -40℃~+85℃ operating environments with ROHS compliance.
Key Features | |
Dual-Function Combo Design Combines GPS (GNSS) and LTE antennas in one housing to simplify device integration and save installation space. | GPS RHCP with Integrated LNA GPS dielectric antenna supports RHCP polarization with 28±2dB LNA gain for enhanced positioning performance. |
Wideband LTE Coverage LTE antenna supports 698~960MHz and 1710~2690MHz for broad cellular band compatibility. | Stable RF Performance GPS V.S.W.R < 1.5 (antenna) and < 2.0 (LNA); LTE V.S.W.R (min) < 3.0 with 50Ω impedance. |
Flexible Mounting Options Supports adhesive or magnetic mounting for fast installation on equipment enclosures, vehicles, and gateways. | Outdoor-Ready Protection IP66 ingress protection with ABS radome, -40℃~+85℃ operating temperature, and ROHS compliance. |
| System | Parameter | Specification |
|---|---|---|
| GPS Antenna (Dielectric) | Center Frequency | 1575.42±3MHz |
| Band Width | CF±5MHz | |
| Polarization | RHCP | |
| Gain | 2 dBic (Zenith) | |
| V.S.W.R | < 1.5 | |
| Impedance | 50Ω | |
| Axial Ratio | 3 dB (max) | |
| GPS LNA | LNA Gain | 28±2 dB |
| Noise Figure | < 1.5 dB | |
| V.S.W.R | < 2.0 | |
| Supply Voltage | 2.2~5V DC | |
| Current Consumption | < 15 mA | |
| LTE Antenna | Frequency Range | 698~960MHz / 1710~2690MHz |
| V.S.W.R (min) | < 3.0 | |
| Polarization | Linear | |
| Gain | 2 dBi | |
| Impedance | 50Ω | |
| Mechanical | Cable | RG174 |
| Connector | SMA / MCX / FAKRA or others | |
| Radome Material | ABS | |
| Mounting Method | Adhesive / Magnet | |
| Dimensions (Drawing) | 96.3×36.2×15.8 mm (unit: mm) | |
| Environmental | Operating Temperature | -40℃~+85℃ |
| Relative Humidity | Up to 95% | |
| Ingress Protection | IP66 | |
| Vibration | 10 to 55Hz with 1.5mm amplitude, 2 hours | |
| Compliance | Environmental Compliance | ROHS Compliant |

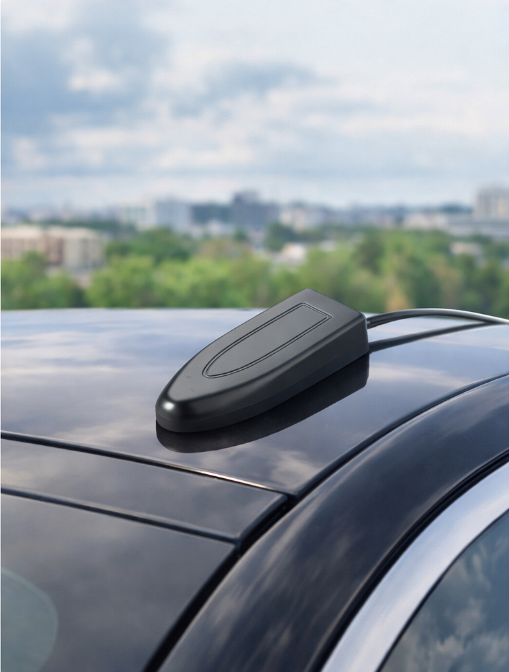

Vehicle telematics, fleet tracking, and in-vehicle gateways requiring combined GNSS + LTE connectivity
Industrial IoT routers, remote monitoring terminals, and outdoor enclosures needing IP66 protection
Asset tracking devices that benefit from GPS RHCP with integrated LNA and wideband LTE coverage
Temporary or mobile installations using magnetic or adhesive mounting for fast deployment
|
|
Request Quote Request Sample Download PDF
MOQ 50 units | Lead Time 1-2 weeks | Warranty 1 year |
GL009 is a combo antenna that integrates a GPS dielectric antenna (1575.42MHz) with an LNA and a wideband LTE antenna (698~960MHz / 1710~2690MHz) in one housing.
The GPS antenna uses RHCP polarization with 2 dBic (Zenith) gain and V.S.W.R < 1.5. The integrated LNA provides 28±2 dB gain with noise figure < 1.5 dB and operates from 2.2~5V DC.

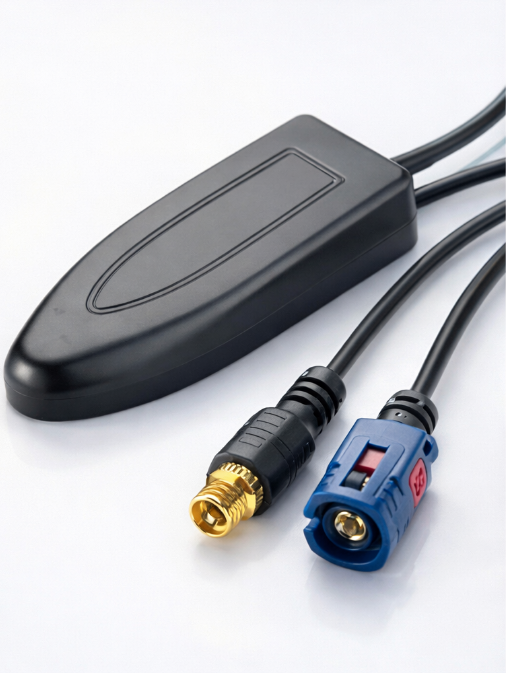

GL009 uses RG174 cable and supports connector options including SMA / MCX / FAKRA (or others). Mounting options include adhesive or magnet.
GL009 is rated IP66, supports -40℃~+85℃ operating temperature, up to 95% relative humidity, and vibration of 10 to 55Hz with 1.5mm amplitude for 2 hours. It is also ROHS compliant.
