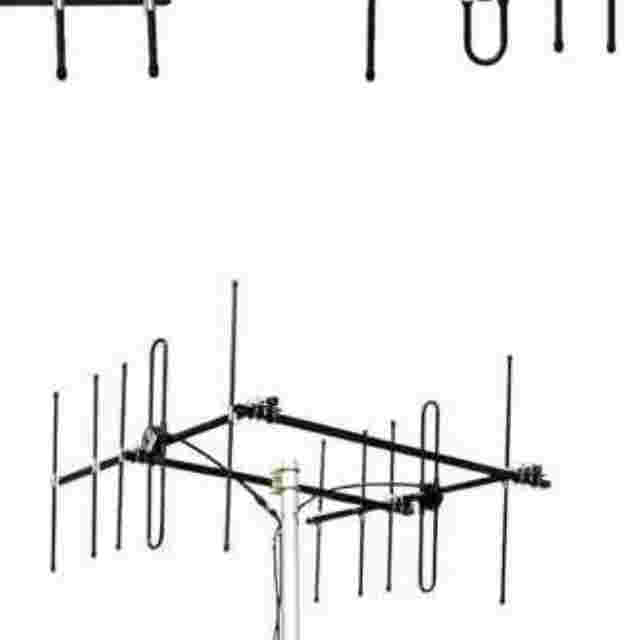

GL400Z5WS

Frequency-MHz 400-490
Bandwidth-MHz 20
Gain-dBi 9
Vertical Beamwidth-o 48
Horizontal Beamwidth-o 54
F/B Ratio-dB ≥15
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 100
Length-m 0.7
Weight-kg 0.6
Rated Wind Velocity-m/s 60
Connector N Female or Customization

EMAIL

Frequency-MHz 400-490 Bandwidth-MHz 20 Gain-dBi 9 Vertical Beamwidth-o 48 Horizontal Beamwidth-o 54 F/B Ratio-dB ≥15 VSWR ≤1.5 Nominal Impedance-Ω 50 Polarization Vertical Maximum Power-W 100 Length-m 0.7 Weight-kg 0.6 Rated Wind Velocity-m/s 60 Connector N Female or Customization
