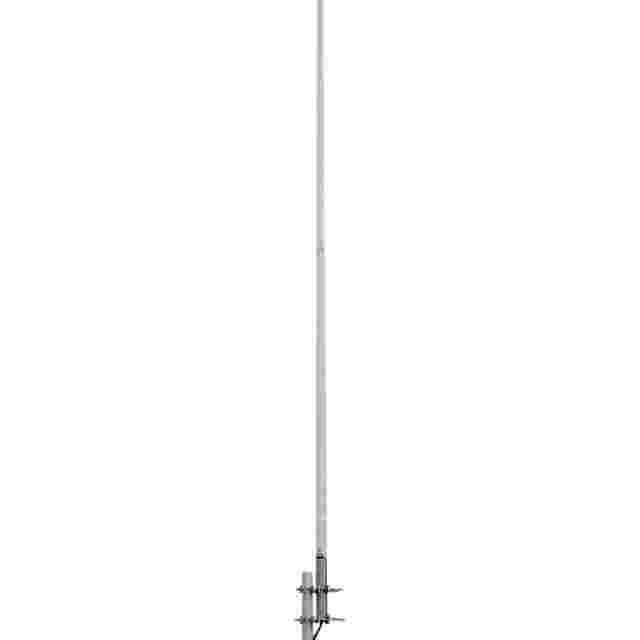

GL400D

Frequency-MHz 400-480
Bandwidth-MHz 16
Gain-dBi 10.2
Vertical Beamwidth-o 10
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 100
Length-m 4.0
Weight-kg 4.2
Rated Wind Velocity-m/s 60
Connector N Female or Customization
Remarks Fiberglass Separated into two parts

EMAIL

Frequency-MHz 400-480 Bandwidth-MHz 16 Gain-dBi 10.2 Vertical Beamwidth-o 10 VSWR ≤1.5 Nominal Impedance-Ω 50 Polarization Vertical Maximum Power-W 100 Length-m 4.0 Weight-kg 4.2 Rated Wind Velocity-m/s 60 Connector N Female or Customization Remarks Fiberglass Separated into two parts
