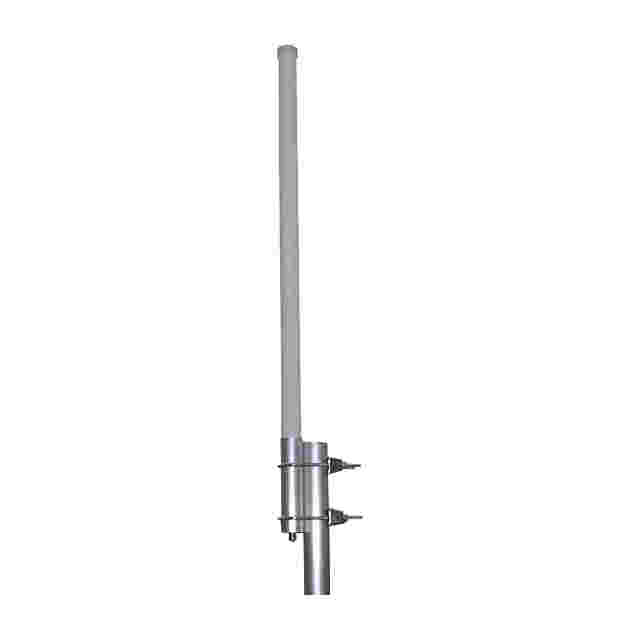

GL400AD6

Frequency-MHz 400-470
Bandwidth-MHz 15
Gain-dBi 6
Vertical Beamwidth-o 35
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 100
Length-m 1.2
Weight-kg 1.4
Rated Wind Velocity-m/s 60
Connector N Female or Customization
Remarks Fiberglass

EMAIL

Frequency-MHz 400-470 Bandwidth-MHz 15 Gain-dBi 6 Vertical Beamwidth-o 35 VSWR ≤1.5 Nominal Impedance-Ω 50 Polarization Vertical Maximum Power-W 100 Length-m 1.2 Weight-kg 1.4 Rated Wind Velocity-m/s 60 Connector N Female or Customization Remarks Fiberglass
