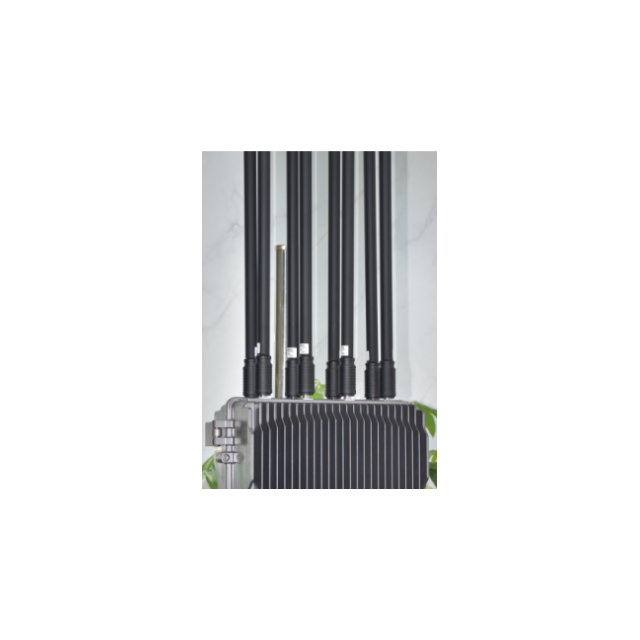

GL1400M6

Electrical Specifications
Frequency Range (MHz) 1430-1450
Horizontal beam width(°) 360
Vertical beam width (°) 23±5°
Gain (dBi) 6±1
VSWR ≤1.5
Maximum input power (W) 100
Impedance (Ω) 50
Mechanical Specifications
Dimensions (mm) ?25/32*600mm
Antenna weight (Kg) 0.2
Radome material fiberglass
Radome color black
Input connector type N male
