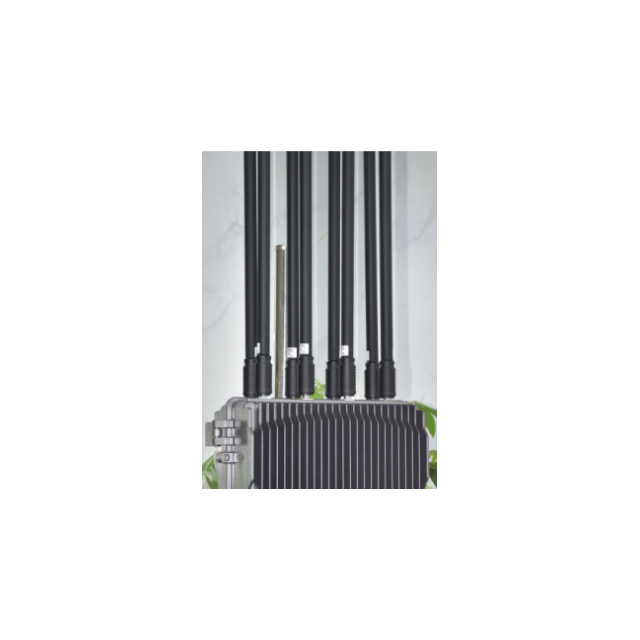

GL1200M6

Electrical Specifications
Frequency Range (MHz) 1180-1280
Horizontal beam width(°) 360
Vertical beam width (°) 23±5°
Gain (dBi) 6±1
VSWR ≤1.5
Maximum input power (W) 100
Impedance (Ω) 50
Mechanical Specifications
Dimensions (mm) ?25/32*600mm
Antenna weight (Kg) 0.2
Radome material fiberglass
Radome color black
Input connector type N male

EMAIL

Electrical Specifications Frequency Range (MHz) 1180-1280 Horizontal beam width(°) 360 Vertical beam width (°) 23±5° Gain (dBi) 6±1 VSWR ≤1.5 Maximum input power (W) 100 Impedance (Ω) 50 Mechanical Specifications Dimensions (mm) ?25/32*600mm Antenna weight (Kg) 0.2 Radome material fiberglass Radome color black Input connector type N male
