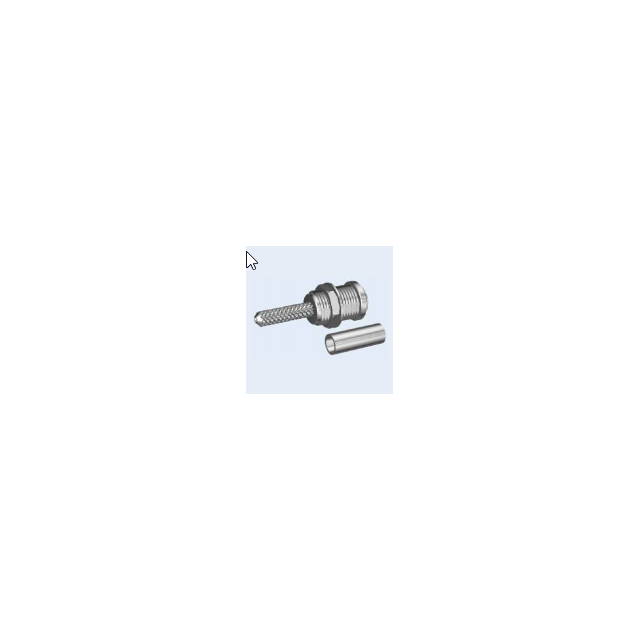

GL122A-2501

Frequency Range(GHz) DC–6 Impedance(ohm) 50 VSWR <1.20 Insertion loss 0.1 dB @1GHz Operating voltage(max) 335V(rms) Pressure resistance(rms) 750V(rms) Insulation resistance ≥1000 MΩ Durability 500 cycles Mechanical specifications Product No. 122A-2501 / 122A-2502 / 122A-2503 Product type MCX-KY2 / MCX-KY3 / MCX-KY2.5D Apply cable 2/50S / 2.5/3/50S / 2.5/50D Mounting Hole H3.1 Notes A=2.5 L=17.6 / A=3.1 L=18.1 / A=3.4 L=19.1 Body Brass, gold plated Contact Beryllium copper, gold plated Insulator PTFE Temperature range -65~ +250
