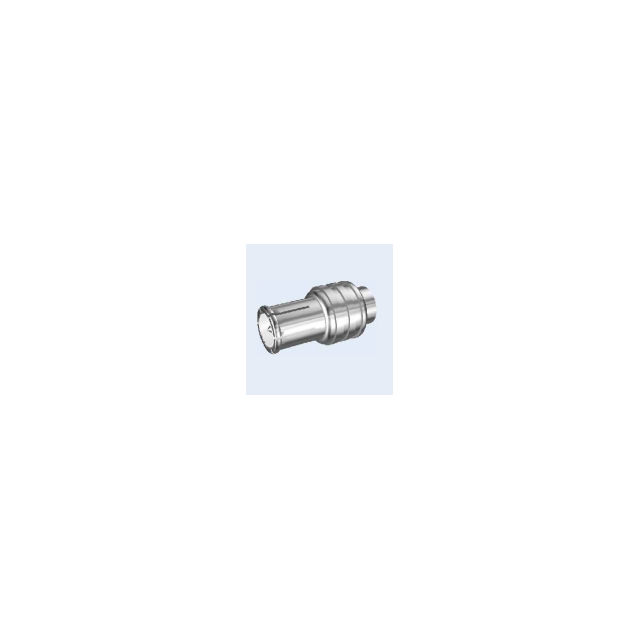

GL121A-7661

Frequency Range(GHz) D C–6 Impedance(ohm) 50 VSWR <1.20 Insertion loss 0.1 dB @1GHz Operating voltage(max) 335V(rms) Pressure resistance(rms) 750V(rms) Insulation resistance ≥1000 MΩ Durability 500 cycles Mechanical specifications Connector MCX-JB1 (Straight Plug)/Straight Plug Apply cable ?0.047/?0.086 semi-rigid cable Notes A = 1.3/2.2 Body Brass, gold plated Pin Brass, gold plated Female contact Beryllium copper, gold plated Insulator PTFE Temperature range -65°C ~ +155°C Temperature range -65~ +250
