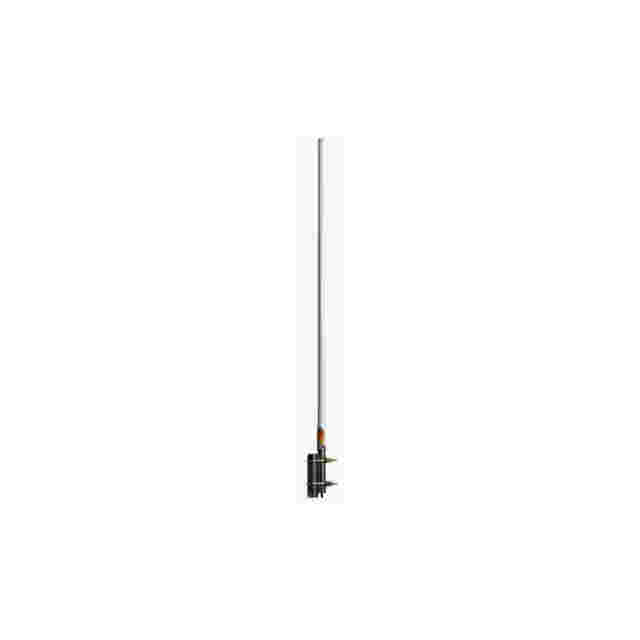

GL1200A

Frequency(Mhz) 1120-1200
Bandwidth(MHz) 80
Gain(dBi) 12
Vertical?Beamwidth(°) 10.5
Horizontal Beamwidth(°) 360
VSWR ≤1.5
Nominal?Impedance(Ω) 50
Polarization Vertical
Maximum Power(W) 100
Dimensions(m) 3.4
Weight(kg) 3.5
Connector N Female or Customization
Rated Wind Velocity(m/s) 60
Mounting Mast Diameter(mm) φ35-50

EMAIL

Frequency(Mhz) 1120-1200 Bandwidth(MHz) 80 Gain(dBi) 12 Vertical?Beamwidth(°) 10.5 Horizontal Beamwidth(°) 360 VSWR ≤1.5 Nominal?Impedance(Ω) 50 Polarization Vertical Maximum Power(W) 100 Dimensions(m) 3.4 Weight(kg) 3.5 Connector N Female or Customization Rated Wind Velocity(m/s) 60 Mounting Mast Diameter(mm) φ35-50
