5G Panel Antennas

  • GL-DY3338V16   5G Panel antenna
GL-DY3338V16   5G Panel antenna

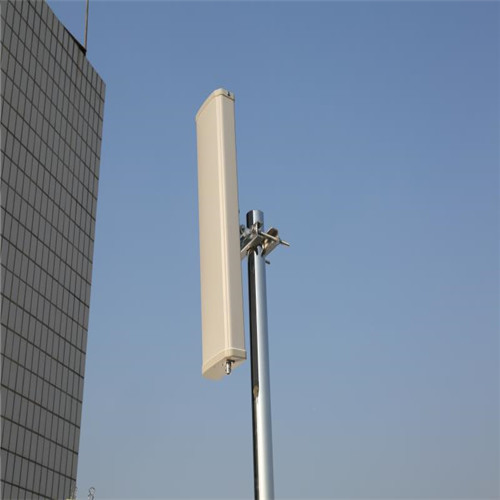

GL-DY3338V16 5G Panel antenna

  • P/N: GL-DY3338V16
  • Weight: 2.7KG
  • Dim: 650×128×56mm
  • Gain:16dBi
  • Product description: GL-DY3338V16 5G Panel antenna
  • INQUIRY


FOB Port: shanghai or shenzhen

MOQ: 500PCS


Supply Ability:5000 Pcs/Day

Payment: TT,Paypal,Western Union


Packing information: single packing,20pcs/carton


Download Info:here


Electrical Specifications

Frequency Range

3300-3800MHz

Polarization

Vertical

VSWR

≤1.5

Gain

16dBi

Horizontal beam width

90°

Vertical beam width

7.5°

Front-to-back ratio

23dB

Input Impedance

50Ω

Maximum input power

100W

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

N-K

Connector place

Bottom

Dimensions

650×128×56mm

Packing size

750×230×160mm

Antenna weight

2.7kg

Radome material

UPVC

Radome color

Gray

Mechanical tilt

015°

Operating temperature

-40°C to +65 °C

Rated Wind Velocity

60 m/s

Mounting hardware

3575mm


FAQ


Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A: T/T, Paypal, western union etc.


Q: May I visit your company?

A: Sure, welcome any time.


Q: How long is the warranty?

A: 1 year for antennas and half a year for assembly cables and Connectors
