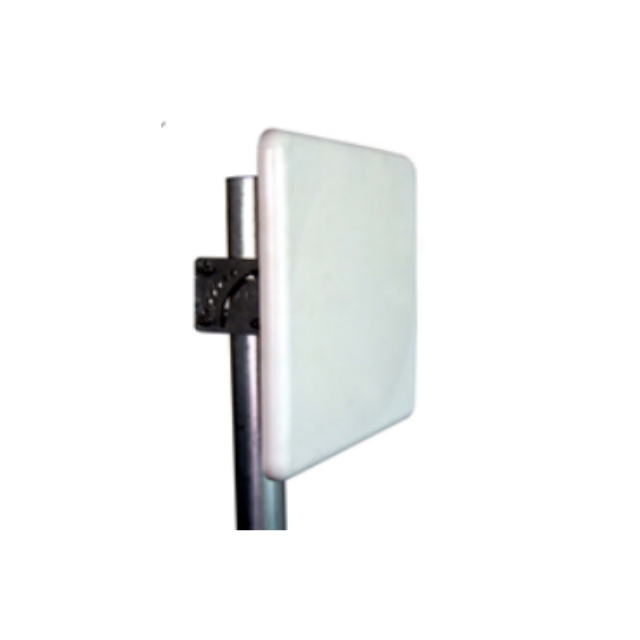

8 Ports Dual-Band High-Gain WiFi Panel Antenna GL2473VH60-8

Frequency Range：2400-2500/5150-5850MHz
Gain：8dBi
V.S.W.R：＜2.0
connector:8*NF
Product description: Dual-Band Coverage (2400-2500MHz & 5150-5850MHz): Supports both 2.4GHz and 5GHz frequencies, ensuring compatibility with modern WiFi routers and IoT devices.
INQUIRY

Electrical Specifications
Frequency Range-MHz	2400-2500/5150-5850MHz	5150-7350MHz
Polarization	2×V+2×H	2×V+2×H
VSWR	≤2.0
Gain-dBi	8dBi
Horizontal beam width	65°	60°
Verticalbeam width	60°	55°
Front-to-back ratio-dB	≥20dB
Isolation	≥20dB
Input Impedance-Ω	50Ω
Maximum input power-W	50W
Mechanical Specifications
Input connector type	8*NF
Connector location	back
Installation	Pole-holding
Dimensions-mm	306×306×25mm
Antenna weight-KGS	2.0kg
Radome material	ABS
Radome color	white
Operating temperature	-40°C to +65 °C
Extreme wind speed	60 m/s
Pole diameter	￠35～￠50mm

Product Introduction

Dual-Band Coverage (2400-2500MHz & 5150-5850MHz): Supports both 2.4GHz and 5GHz frequencies, ensuring compatibility with modern WiFi routers and IoT devices.
High Gain & Wide Beamwidth (8dBi, 65° Horizontal/60° Vertical): Delivers extended signal reach and stable coverage for large areas like stadiums or conference halls.
Durable ABS Radome & Extreme Weather Resistance: Built with robust ABS material and operates in temperatures from -40°C to +65°C, ideal for harsh outdoor environments.
8-Port Design with 50Ω Impedance: Enables seamless integration into multi-device setups, reducing signal loss and optimizing network performance.
Pole-Mounted Installation & Windproof Design: Supports pole diameters of 35-50mm and withstands extreme wind speeds up to 60 m/s for reliable outdoor deployment.

Application scenarios

Outdoor WiFi Expansion: Deploy in parks, campuses, or rural areas for extended wireless coverage.
Enterprise Networks: Enhance connectivity in offices, warehouses, or industrial complexes.
High-Density Venues: Optimize signal distribution in stadiums, conference centers, or shopping malls.
IoT & Smart City Projects: Support large-scale wireless sensor networks or surveillance systems.

FAQ

Q:What is the frequency range of the GL2473VH60 - 8 WIFI small panel antenna?
A:The frequency range is 2400 - 2500/5150 - 5850MHz and 5150 - 7350MHz.

Q:What is the gain of the GL2473VH60 - 8 antenna?
A:The gain of the GL2473VH60 - 8 antenna is 8dBi.

Q:How many ports does the GL2473VH60 - 8 antenna have?
A:The GL2473VH60 - 8 antenna has 8 ports.

Q:What is the input impedance of the GL2473VH60 - 8 antenna?
A:The input impedance of the GL2473VH60 - 8 antenna is 50Ω.

Q:What type of radome does the GL2473VH60 - 8 antenna have?
A:The GL2473VH60 - 8 antenna has an ABS radome.

Q:What is the installation method of the GL2473VH60 - 8 antenna?
A:The GL2473VH60 - 8 antenna is installed using the pole - holding method.

Q:What is the maximum wind speed the GL2473VH60 - 8 antenna can withstand?
A:The GL2473VH60 - 8 antenna can withstand an extreme wind speed of 60 m/s.

Q:What is the front - to - back ratio of the GL2473VH60 - 8 antenna?
A:The front - to - back ratio of the GL2473VH60 - 8 antenna is ≥20dB.
