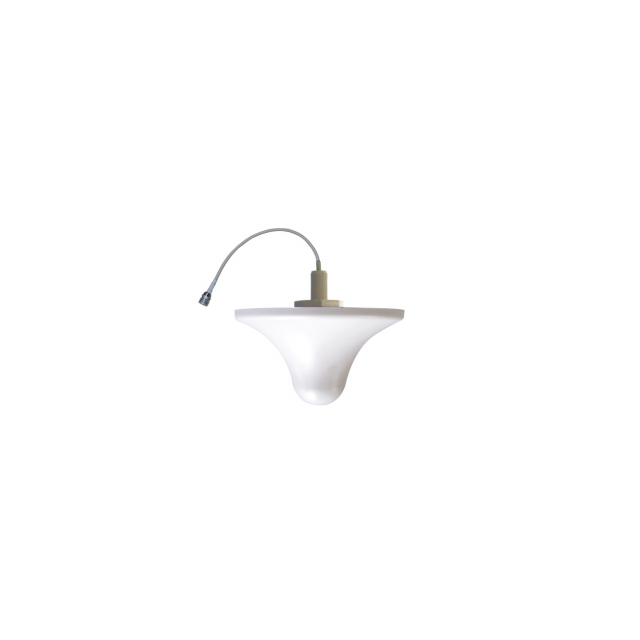

GL-CV0503

Frequency Range 806-960/1710-2700MHz
VSWR ≤1.5
Impedance 50 Ω
Gain 2±0.5/5±1dBi
Polarization Vertical
Beam Width H(half-power) 360°
Beam Width V(half-power) 60°
Max.Power 100w
Connector N-Female
Dimension Φ165x110mm
Weight 0.25Kg
Rated Wind Speed 100km/h
Radome Material ABS

EMAIL

Frequency Range 806-960/1710-2700MHz VSWR ≤1.5 Impedance 50 Ω Gain 2±0.5/5±1dBi Polarization Vertical Beam Width H(half-power) 360° Beam Width V(half-power) 60° Max.Power 100w Connector N-Female Dimension Φ165x110mm Weight 0.25Kg Rated Wind Speed 100km/h Radome Material ABS
