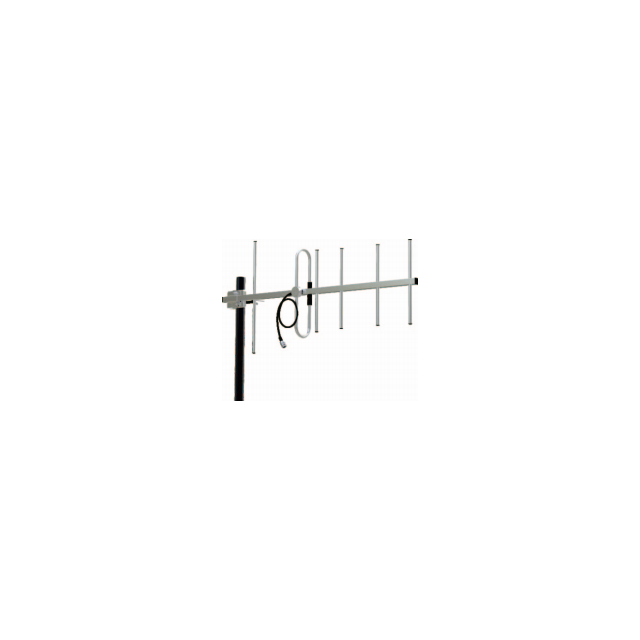

GL-BV1001-1

Frequency Range 430-470MHz No.of Elements 9 VSWR ≤1.5 Impedance 50 Ω Gain 11±1dBi Polarization Vertical or Horizontal Beam Width H(half-power) 60±5° Beam Width V(half-power) 45±2° Electrical Downtilt 0 Front to Back Ratio ≥13 Max.Power 100w Connector N-Female Dimension 1164x380x75mm Weight 0.8Kg Rated Wind Speed 100km/h Radome Material Aluminium Diameter of installation pole Φ30-Φ53mm
