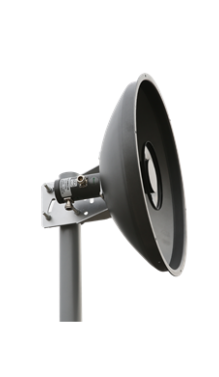

CKPB-5164VH-0.4-24 is a high-performance outdoor directional parabolic antenna engineered for 5100-6425MHz wireless communication scenarios.Adopting a high-efficiency RF design with 50Ω input impedance and 100W max power, it is built with industrial-grade aluminum alloy for harsh outdoor use, ideal for professional PtP wireless networking and broadband access.
CKPB-5164VH-0.4-24 is a high-performance dual-polarized parabolic antenna engineered for the 5100-6425MHz frequency band, integrating excellent electrical performance, robust mechanical design and wide environmental adaptability. It is an ideal solution for wireless communication applications requiring high gain, narrow beamwidth and reliable signal transmission, suitable for various outdoor communication deployment scenarios.

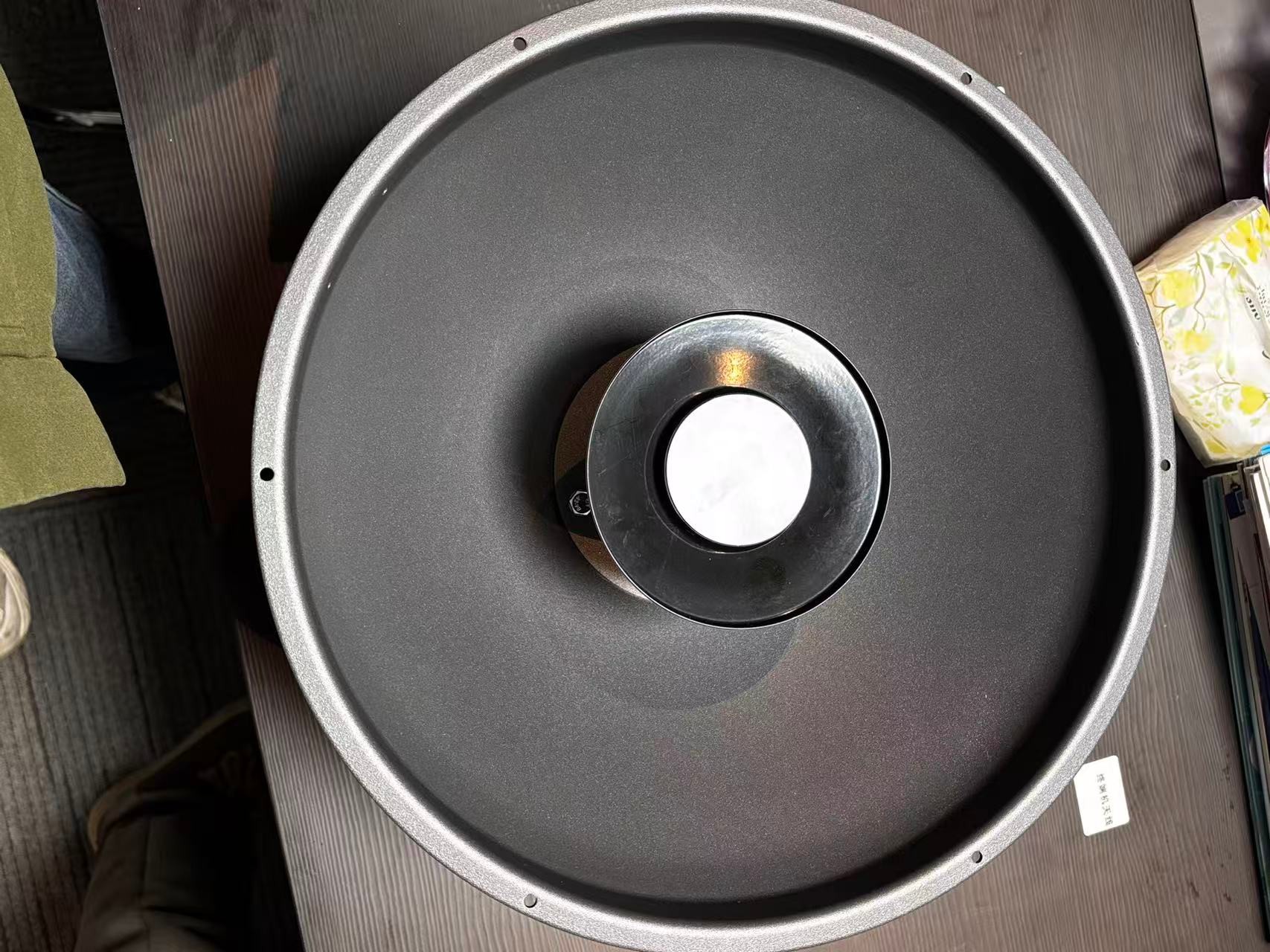

| Electrical performance covers 5100-6425MHz frequency band with vertical + horizontal dual polarization, and 24dBi high gain ensures excellent signal transceiving performance. | Mechanical DesignWith an antenna caliber of φ0.37m and a weight of only 2.8kg, the compact and lightweight design greatly reduces installation difficulty. |
| Environmental AdaptabilityThe operating temperature ranges from -40°C to +65°C, adapting to complex environmental conditions of extreme low and high temperatures. | The standing wave ratio is ≤2.0 with a standard 50Ω input impedance, perfectly matching the interface and transmission requirements of mainstream communication systems. |
Technical Specifications
| Parameter Category | Item | Specification |
| Electrical Specifications | Frequency Range | 5100-6425MHz |
| Polarization | Vertical + Horizontal | |
| VSWR | ≤2.0 | |
| Gain | 24dBi | |
| Input Impedance | 50Ω | |
| Mechanical Specifications | Mechanical Tilt Angle | -15° ～ +15° |
| Weight | 2.8kg | |

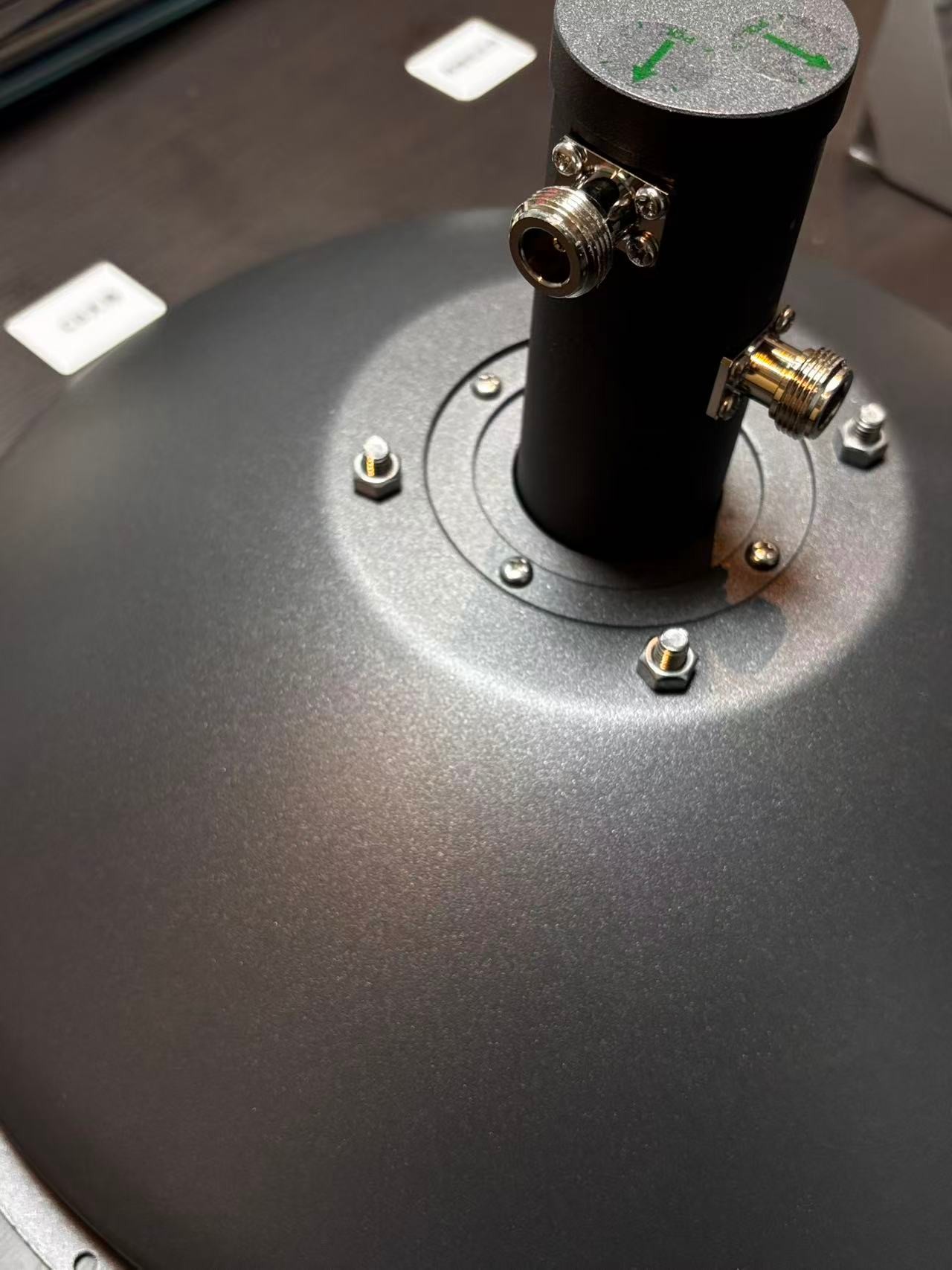

| Interface Type | 2×N Female Connector | |
| Environmental Specifications | Operating Temperature | -40°C to +65°C |
| 5G Outdoor Millimeter Wave Base Station Signal Coverage & Transmission | 5100-6425MHz frequency band matches 5G sub-6G millimeter wave deployment; 24dBi high gain and 9° narrow beamwidth ensure long-distance, high-precision signal transmission; dual polarization supports high-speed 5G data communication. |
| Emergency Communication & Temporary Wireless Network Construction | Universal mounting (φ25～φ60mm poles) enables quick installation and deployment for emergency scenarios; wide environmental adaptability works in extreme temperature and harsh weather conditions; reliable signal transceiving supports emergency communication link establishment. |
| Outdoor Industrial Wireless Communication (Power/Oil & Gas Industry) | -40°C to +65°C wide operating temperature fits extreme industrial outdoor environments; corrosion-resistant aluminum alloy reflector adapts to power/oil and gas field harsh working conditions; stable performance supports industrial production real-time data transmission. |
