Ceiling Antennas

  • 4G/5G Omni Ceiling Mount Antenna GL-DY7038H3

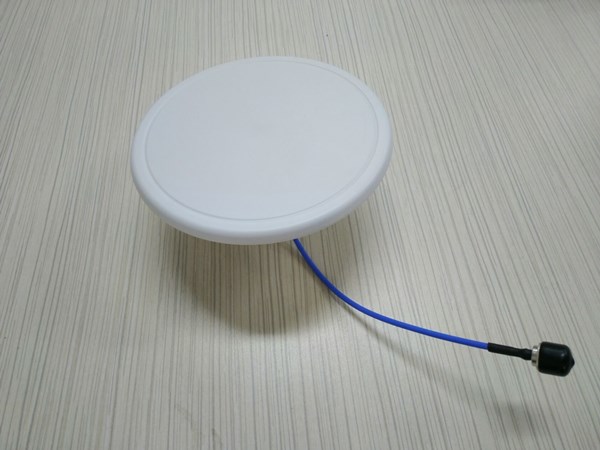

4G/5G Omni Ceiling Mount Antenna GL-DY7038H3

4G/5G Omni Ceiling Mount Antenna GL-DY7038H3

  • P/N: GL-DY7038H3
  • Gain:2.5-5dBi
  • Connector:N-K
  • Freq:698-960/1710-2700MHz/3400-3800MHz
  • Product description: Indoor distributed antenna system
  • INQUIRY



FOB Port: Guangzhou

MOQ: 100PCS

Supply ability:1000PCS/DAY

Payment: TT,Paypal,Western Union before shipment



Download Info: here



Features

1,Light weight, small size, wide bandwidth;

2,Anti-ultraviolet ABS radome.



Electrical Specifications

Frequency Range

698-960MHz

1710-2700MHz

3400-3800MHz

VSWR

2.0

1.8

2.0

Gain

2.5dBi

4dBi

5dBi

Horizontal beam width

360°

360°

360°

Vertical beam width

90°/ 80°

75°/ 65°

60°/ 55°

Polarization

Horizontal

Intermodulation IM3 (2x33dBm)

≤-150dBc

Input Impedance

50Ω

Maximum input power

50W

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

N-K

Dimensions

Ø190×8mm

Antenna weight

0.25kg

Radiating Element Material

PCB

Radome material

ABS

Radome color

White

Operating temperature

-40°C to +65 °C




FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
