GSM/3G Antennas

  • GPS/GNSS-GSM/3G Antenna
  • GPS/GNSS-GSM/3G Antenna
  • GPS/GNSS-GSM/3G Antenna
GPS/GNSS-GSM/3G AntennaGPS/GNSS-GSM/3G AntennaGPS/GNSS-GSM/3G Antenna

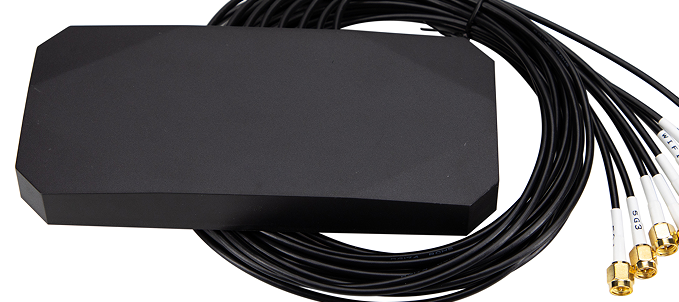

GPS/GNSS-GSM/3G Antenna

  • P/N: GL-DYB062
  • Cable: RG174,3m
  • Connector: SMA male
  • Mounting: Screw
  • Product description: This application shall apply for antenna unit which shall be used with an engine for an automobile
  • INQUIRY


FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability:5000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment

Download Info: here

Electrical Index

Product Name

GPSGNSS+5G+WiFi Antenna

Product Number

GL059-1

Band

GPSGNSS

Mobile network MIMO 4

WiFi network MIMO 2

Frequency Range-MHz

1561.098-1606

698-960/1710-2690/2900-3800

2400~2483.5/4900~5925

Band Width-MHz

44.902

262/980/900

83.5/1025

V.S.W.R

≤1.5

≤2.0

Gain-dBi

2.0dBic(Zenith)

2.0

2.0

LNA Gain-dBi

28±2

--

--

Polarization

RHCP

Linear

Linear

Supply Voltage

2.2-5V    DC

--

--

Current Consumption

5-15mA

---

---

Input Impedance-Ω

50

Mechanical Index

Cable

LMR100-1m

Connector

SMA male

SMA male

RP-SMA male

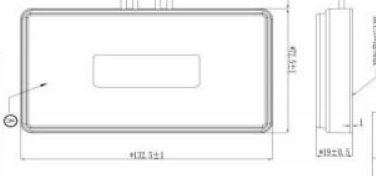

Antenna Dimension-mm

132×72×19

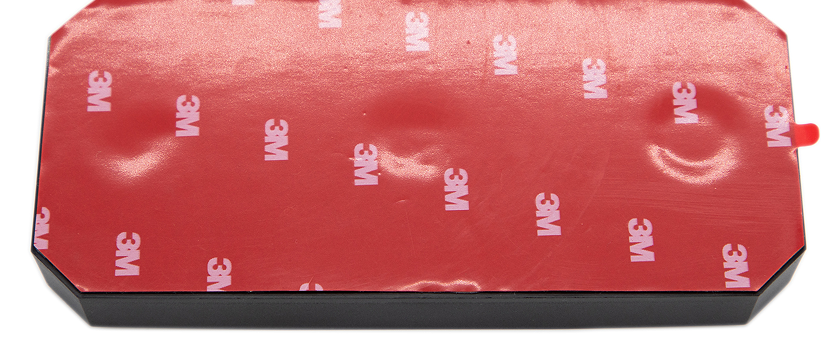

Installation way

3M tape

Ingress Protection

IP65-IP67(exclude cable outlet)

Vibration

10 to 55MHz with 1.5mm amplitude 2 hours

Relative Humidity

Up to 95%

Environmentally Friendly

ROHS Compliant

Temperature-

-40-+85







FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.

Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: 1 year for antennas and half a year for assembly cables and Connectors
