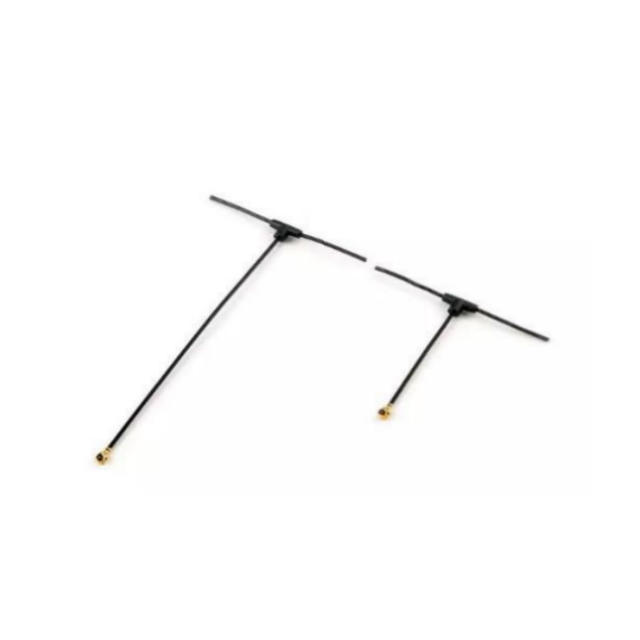

2400Mhz IPEX connector WIFI T shape Omni Antenna GL027

Product Introduction

1. T-shape Omni-directional Design
   The T-shape structure ensures 360° signal coverage, making it ideal for areas requiring uniform WIFI distribution, such as offices or small commercial spaces .

2. High Efficiency & Gain
   With 81.46% efficiency and >2dBi gain, it minimizes signal loss and enhances WIFI performance, ensuring stable connectivity for multiple devices .

3. Flexible Connector Options
   Supports IPEX/IPX/U.FL Connectors, allowing easy integration with various WIFI modules, routers, and IoT devices .

4. Compact Size for Versatile Installation
   Measuring 52mm in width and 130mm in length, it fits seamlessly into tight spaces, suitable for both indoor and semi-outdoor setups .

5. Optimized Directivity
   Boasts 5.12dB directivity with peak gain positioned at Theta 180.00 and Phi 330.00, balancing coverage and signal focus .

Application scenarios

• Router Signal Enhancement: Replace stock antennas on home/office routers for wider 360° coverage
• IoT Device Upgrades: Boost connectivity for security cameras, smart sensors in warehouses
• Drone FPV Systems: Lightweight aerial solution with directional stability
• Ceiling-Mounted APs: Optimal for access points in drop-ceiling installations
• Lab Testing Equipment: Reliable reference antenna for RF testing setups

FAQ

Q: What devices support this antenna?
A: Compatible with any 2.4GHz device featuring IPEX/IPX/U.FL connectors (routers, drones, IoT modules).

Q: Is this directional or omnidirectional?
A: Omnidirectional with 360° horizontal coverage, peak gain at 180° Theta/330° Phi.

Q: How does the T-shape improve performance?
A: The design optimizes radiation pattern control, achieving 81.46% efficiency with balanced upper/lower hemisphere coverage.

Q: What's the actual gain value?
A: Exceeds 2dBi minimum with measured peak gain positioning for reliable signal projection.

Q: Can I use this outdoors?
A: Specifications don't include IP rating - recommended for indoor/protected outdoor installations.

Q: Why choose this over stick antennas?
A: The T-configuration provides superior directional control (5.12dB directivity) while maintaining omni coverage.

Q: How do I install it?
A: Mount horizontally via screw holes (see outline drawing). Ensure connector matches your device's port (IPEX/IPX/U.FL).

Q: What efficiency metrics matter most?
A: Total efficiency 81.46% (ThetaPol 20.90% + PhiPol 60.56%) ensures minimal power loss during transmission.
