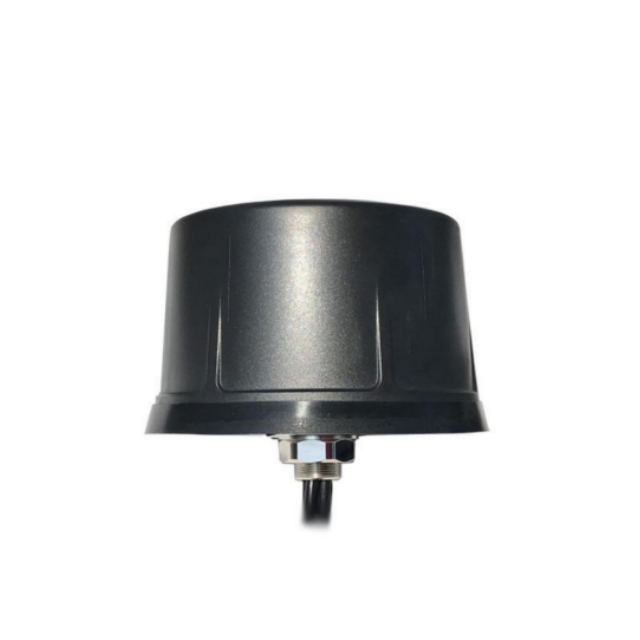

SMA male connector 5dbi gain 4x4 MIMO Antenna GL603

Product Introduction

1. 4x4 MIMO Technology for High-throughput
   Supports 4x4 MIMO configuration across 698-960/1710-2700MHz bands, enabling simultaneous multi-stream data transmission to boost network capacity and reduce latency .

2. Dual-band Gain Optimization
   Delivers 3dBi gain in low bands (698-960MHz) and 5dBi in high bands (1710-2700MHz), balancing coverage and signal strength for diverse communication needs .

3. IP67 Waterproof & Rugged Design
   Withstands water immersion and dust ingress, making it ideal for outdoor installations. The ABS material resists UV degradation and impacts in harsh environments .

4. Four SMA Male Connectors
   Features 4xSMA male connectors with LMR200 cables, ensuring stable signal transmission and easy integration with MIMO-enabled routers or base stations .

5. Wide Temperature & Humidity Tolerance
   Operates from -40℃ to +85℃ and withstands 95%-100% humidity, ensuring reliable performance in extreme climates .

Application scenarios

• Boosting cellular signals for remote IoT sensors (agriculture, utilities).

• Enhancing 4G/LTE connectivity in rural homes, farms, or cabins.

• Providing reliable backup internet for off-grid businesses.

• Improving MIMO performance on industrial routers/gateways in factories.

• Enabling mobile network repeaters in vehicles or temporary sites.

• Supporting surveillance systems in low-coverage areas.

• Deploying smart city infrastructure (kiosks, signage, meters).

FAQ

Q: What frequency bands does the GL603 antenna support?
A: It supports 698-960MHz and 1710-2700MHz bands, covering major global cellular standards.

Q: Is this antenna suitable for outdoor use?
A: Yes, its IP67 waterproof rating and wide operating temperature (-40°C to +85°C) make it ideal for harsh outdoor/industrial environments.

Q: What type of connectors does it have?
A: It comes with 4x SMA male connectors, compatible with most cellular routers/modems.

Q: What is the gain of this antenna?
A: It offers 3dBi gain in the lower band (698-960MHz) and 5dBi gain in the upper band (1710-2700MHz).

Q: Can I use this antenna for 5G networks?
A: While it supports frequencies up to 2700MHz (which includes some 5G bands like n7, n66), it’s primarily optimized for 4G/LTE. Check your specific 5G band requirements.

Q: How is the antenna mounted?
A: It features a screw-mounting design for secure installation on poles, walls, or vehicles.

Q: What cable is used, and is it included?
A: Yes, it includes 4x LMR200 coaxial cables (low-loss, 50Ω impedance) pre-connected to the SMA ports.

Q: What is the VSWR specification?
A: The Voltage Standing Wave Ratio is ≤2.5 across all operating bands, ensuring efficient power transfer.
