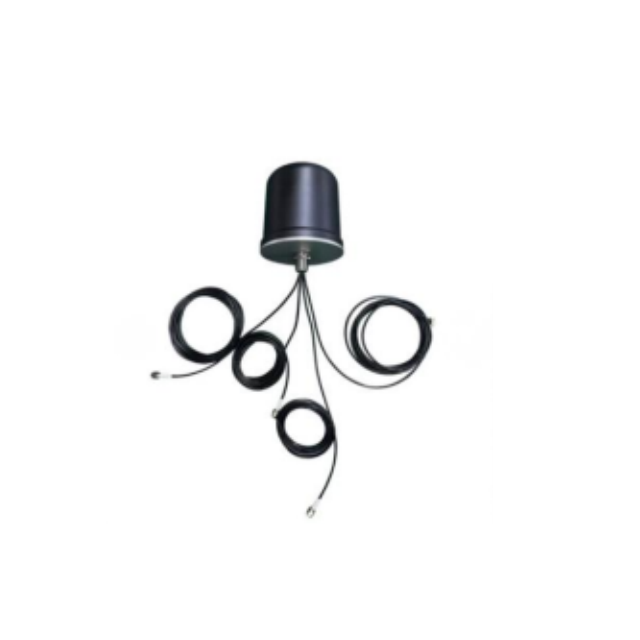

Quad-band RG174 cable MIMO antenna GL606

Product Introduction

1.Quad-Band 4x4 MIMO Technology
Covers 617-960MHz (LTE), 1427-2690MHz (4G/5G), 3300-5000MHz (5G NR/CBRS), and 5150-6000MHz (WiFi 6/5GHz) for maximum compatibility.

2.Ultra-Low VSWR ≤1.5
Superior signal efficiency in 1427-2690MHz band minimizes power loss for critical mid-band applications.

3.Industrial-Grade Resilience
IP67 waterproof rating and -40°C to +85°C operating range withstand extreme environments (factories, remote sites).

4.Compact & Lightweight Design
Φ96×102mm dimensions and 340g weight enable flexible deployment on vehicles, drones, or confined spaces.

5.Future-Proof Connectivity
Supports emerging technologies: Private 5G (n78/n48), CBRS, and WiFi 6E with optimized high-frequency performance.

Application scenarios

• Private 5G Networks: Factory automation, smart warehouses

• CBRS Deployments: Campus security, rural broadband

• Drone/UAV Communications: Real-time HD video transmission

• Mobile Command Centers: Emergency response vehicles

• WiFi 6 Backhaul: Outdoor access point connectivity

• Marine/Offshore Systems: Monitoring equipment on vessels

• Mining/Construction: IoT sensors in harsh terrain

FAQ

Q: Does this support 5G mmWave?
A: No, it covers sub-6GHz bands (up to 6000MHz) including n48 (CBRS), n77/n78 5G, but not mmWave (24GHz+).

Q: What devices connect to the 4x SMA ports?
A: Cellular routers (e.g., Peplink, Cradlepoint), 5G CPEs, WiFi access points with external antenna ports.

Q: Is cable length customizable?
A: Standard RG174 cables are included; contact us for custom lengths/Connectors.

Q: Can I use this for WiFi 6E?
A: Yes! The 5150-6000MHz band supports 5GHz/6GHz WiFi 6/6E access points.

Q: What’s the gain for 3300-5000MHz?
A: Gain varies by band (specified 3/5dBi for 617-960MHz). Typical gain for higher bands: ~4dBi (contact for detailed radiation patterns).

Q: How does VSWR ≤1.5 benefit performance?
A: Reduces signal reflection by 96% vs. standard antennas (VSWR 2.5), maximizing power transfer in mid-bands.

Q: Is grounding required?
A: Recommended for lightning protection in permanent outdoor installations (use grounded mounting brackets).

Q: How does GL606 differ from GL603?
A: GL606 adds 3300-6000MHz support for 5G/WiFi 6, uses lighter RG174 cables, and has a smaller form factor.
