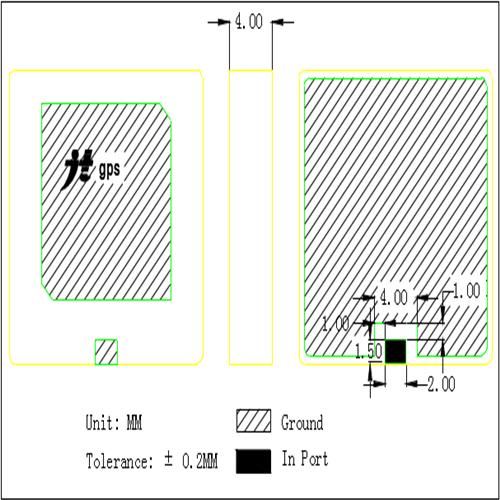

GL-DYS18N4

1 Center Frequency

2 Return Loss @ F0

3 VSWR @ F0

1575.42 ± 3.0 MHz

1602-1608MHz

≥15 dB

≦1.5

4 Bandwidth @ 10dB Return loss

≥6.5 MHz

5 Polarization

RHCP

6 Gain @ Zenith

2.0 dBi typ.

7 Gain @ 10° elevation

8 Axial Ratio @ F0

≤3.0 dB

9 Ground plane

20 x 20 mm

10 Impedance

50 Ω

11 Frequency Temperature Coefficient

±20 ppm/℃

12 Operation Temperature Range

-40 ~ +85℃
