Combo Antennas

  • GPS+GSM Antenna GL-DY009
  • GPS+GSM Antenna GL-DY009
GPS+GSM Antenna GL-DY009GPS+GSM Antenna GL-DY009

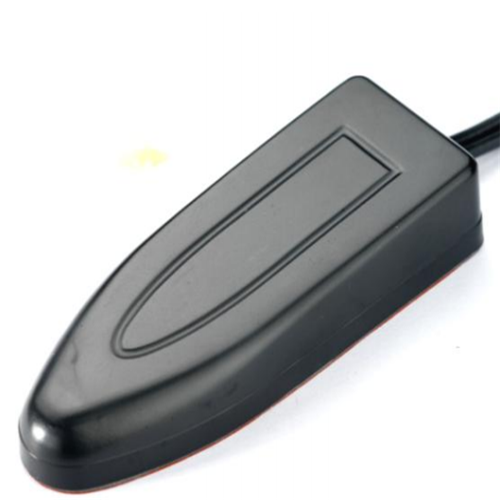

GPS+GSM Antenna GL-DY009

  • P/N: GL-DY009
  • Cable: RG174,5m
  • Connector: SMA male and SMC female
  • Mounting: Magnet
  • Product description: This application shall apply for antenna unit which shall be used with an engine for an automobile
  • INQUIRY


FOB Port: Shanghai or Shenzhen

MOQ:        100PCS

Supply Ability:  5000PCS/DAY

Payment: TT,Paypal,Western Union before Shipment


Download Info: here


Item

Specifications

GPS Antenna

Dielectric Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBicZenith

V.S.W.R

1.5

Impendance

50Ω

Axial Ratio

3dBmax

LNA

Gain

28±2dB i

Noise Figure

1.5

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

V.S.W.R

2.0

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

GSM Antenna

Frequency Range

824~960MHz/1710~2170MHz

V.S.W.Rmin

2.5

Polarization

Linear

Gain

2dBi

Impendance

50Ω

Mechanical

Cable

RG174

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Magnet

Environmental

Operating Temperature

-40~+85

Relative Humidity

Up to 95%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant



FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
