GLTNC1601

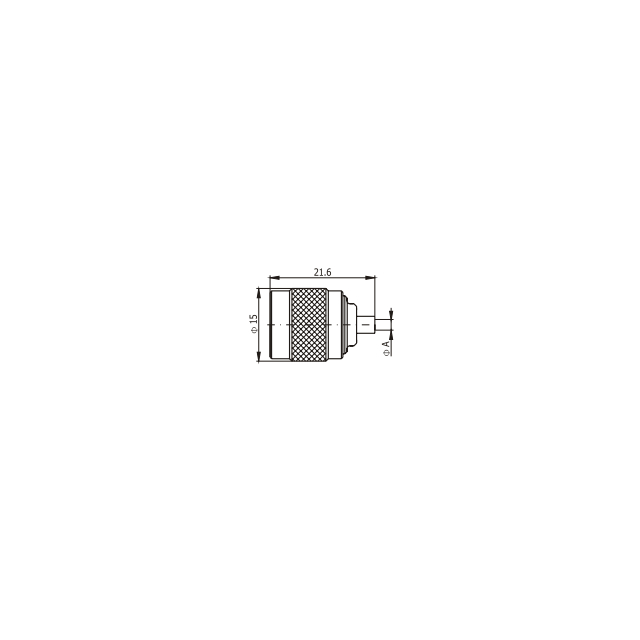

Frequency Range(GHz) 0-11 Characteristic impedance(ohm) 50Ω VSWR ≤1.3 Insulation resistance ≥5000MΩ Dielectric Withstanding voltage 1500V(rms) Contact resistance Center conductor ≤1.5mΩ Outer conductor ≤0.2mΩ Connector TNC Apply cable 086/141 Length(mm) Ф15*21.6 Durability 500 Cycles MATERIAL AND PLATING Body Brass,nickel plated Male center contacts Brass,gold plated Female center contacts Beryllium copper,gold plated Insulators PTFE Crimp ferrules copper alloy,nickel plated Gaskets Silicone rubber Temperature range -65~+165℃
