GLSSMB1640

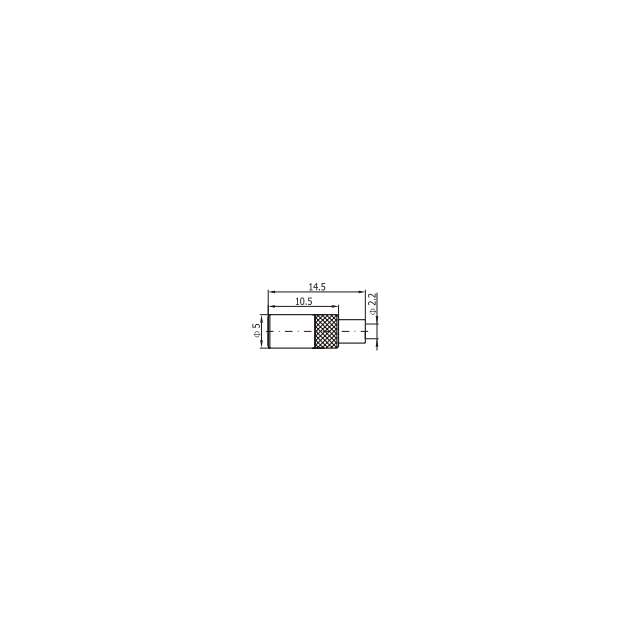

Frequency Range(GHz) 0-3 Characteristic impedance(ohm) 50Ω VSWR Straight <1.22 (0~1GHz) <1.35 (1~3GHz) Right angle <1.50 (0-1GHz) <1.63 (1-3GHz) Insulation resistance ≥1000MΩ Dielectric Withstanding voltage 500V(rms) Contact resistance Center conductor ≤5mΩ Outer conductor ≤2.5mΩ Connector SSMB Length(mm) Ф5*14.5 Apply cable 086 Durability 500 Cycles MATERIAL AND PLATING Body Brass,gold plated Male center contacts Brass,gold plated Female center contacts Beryllium copper ,gold plated Insulators PTFE Crimp ferrules Copper alloy,nickel or gold plated Temperature range -55~+155℃
