GLSSMA1648

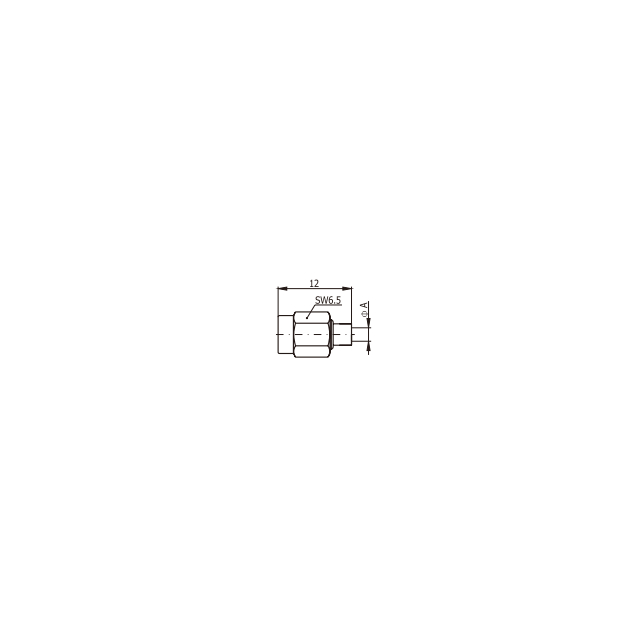

Frequency Range(GHz) 0-35 Characteristic impedance(ohm) 50Ω VSWR ≤1.07+0.01f Insulation resistance ≥1000MΩ Dielectric Withstanding voltage 750V(rms) Contact resistance Center conductor ≤4mΩ Outer conductor ≤2.5mΩ Connector SSMA Apply cable 086 Length(mm) Ф1.3*12(A=1.3) Durability 500 Cycles MATERIAL AND PLATING Body Brass,gold plated Male center contacts Brass,gold plated Female center contacts Beryllium copper ,gold plated Insulators PTFE Crimp ferrules Copper alloy,nickel or gold plated Temperature range -55~+155℃
