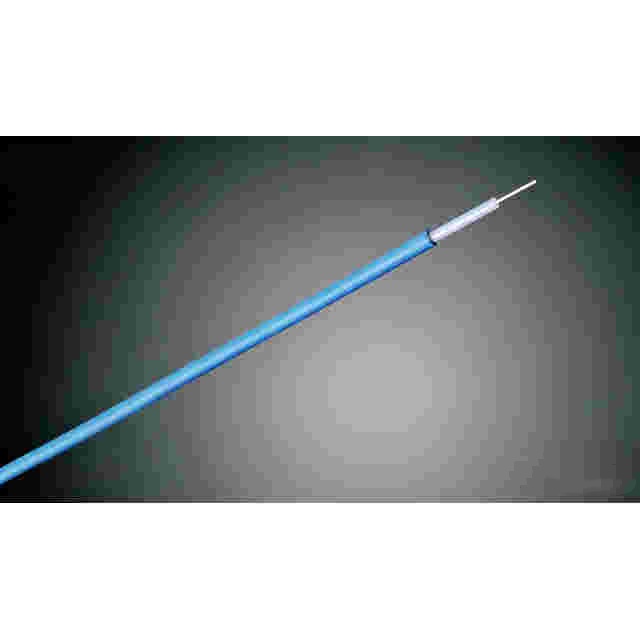

GLRG405

Cable?Construction No Material?quality Dimensions 1.Inner Conductor Silver plated copper/Silver plated copper coated steel Φ0.52±0.02mm 2.Insulation PTFE Ф1.65±0.1mm 3.Braid Silver plated copper wire Ф2.15±0.1mm 4.Jacket FEP Φ2.5±0.1mm Mechanical Characteristics and Electrical Performance Parameters Impedance 50±2Ω Capacitance 95±2PF/M Velocity 70% Peak?Power 2.1KW Inner?Conductor?Dc?resistance ≥118.5ohms/1000m Outer?Conductor?Dc?resistance ≥10.38ohms/1000m Cutoff?Frequency 41GHz Operating?Temperature?(℃) -55~+200℃ VSWR DC~6GHz <1.25
