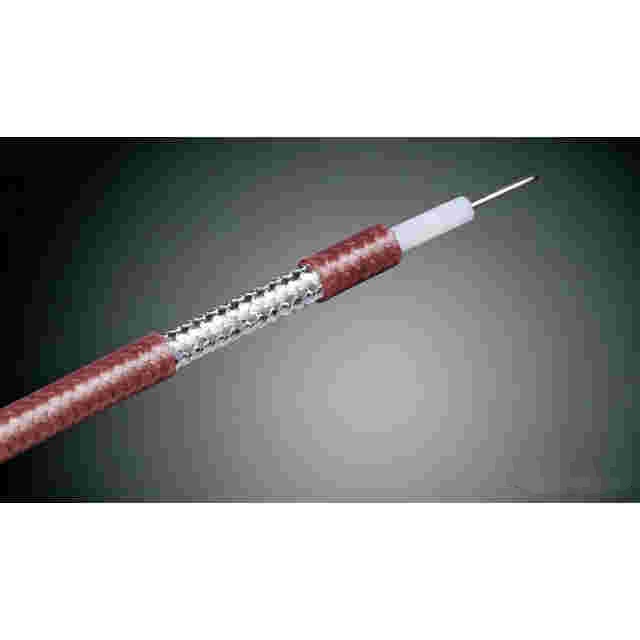

GLRG400

Cable?Construction No Material?quality Dimensions 1.Inner Conductor Silver plated copper/Silver plated copper coated steel Φ19/0.2±0.02mm 2.Insulation PTFE Ф2.95±0.1mm 3.Braid Silver plated copper wire Ф4.34±0.1mm 4.Jacket FEP Φ4.95±0.1mm Mechanical Characteristics and Electrical Performance Parameters Impedance 50±2Ω Capacitance 95.1±2PF/M Velocity 69.5% Peak?Power 2.1KW Inner?Conductor?Dc?resistance ≥21.96ohms/1000m Outer?Conductor?Dc?resistance ≥6.028ohms/1000m Cutoff?Frequency 41GHz Operating?Temperature?(℃) -55~+200℃ VSWR DC~6GHz <1.25
