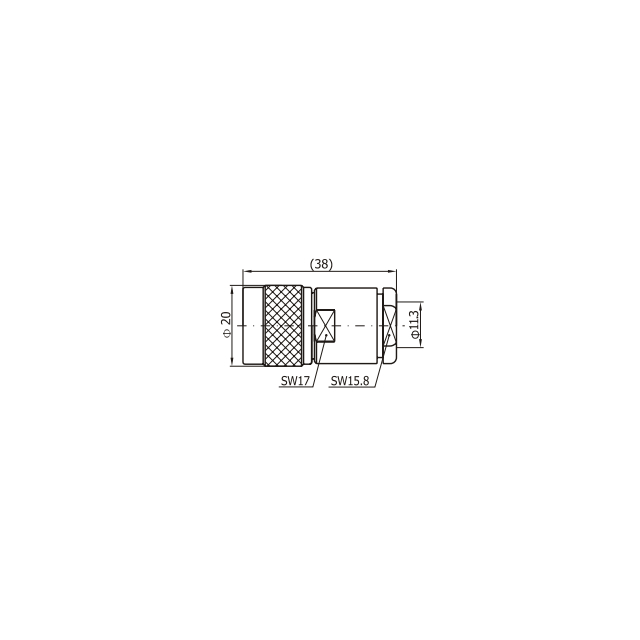

GLN7

Frequency Range(GHz) 0-11 Characteristic impedance(ohm) 50 VSWR ≤1.3 Insulation resistance ≥5000MΩ Dielectric Withstanding voltage 1500V(rms) Contact resistance Center conductor ≤1mΩ Outer conductor ≤0.2mΩ Connector N Length(mm) Ф20*38 Apply cable 086/141 Durability 500 Cycles MATERIAL AND PLATING Body Brass,nickel/gold plated Male center contacts Brass,gold plated Female center contacts Beryllium copper,gold plated Insulators PTFE Crimp ferrules copper alloy,nickel plated Gaskets Silicone rubber Temperature range -40~+90℃
