GLN12

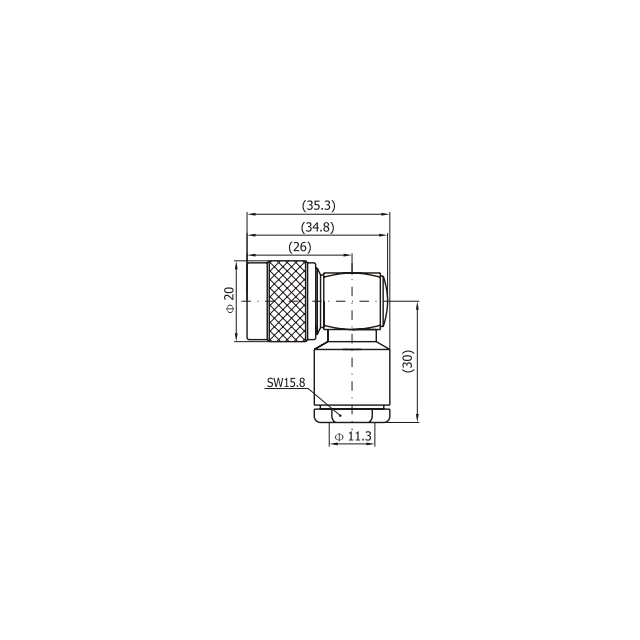

Frequency Range(GHz) 0-11 Characteristic impedance(ohm) 50 VSWR ≤1.3 Insulation resistance ≥5000MΩ Dielectric Withstanding voltage 1500V(rms) Contact resistance Center conductor ≤1mΩ Outer conductor ≤0.2mΩ Connector N Length(mm) Ф20*35.3*30(ФA=11.3) Apply cable 7/50S+D Durability 500 Cycles MATERIAL AND PLATING Body Brass,nickel/gold plated Male center contacts Brass,gold plated Female center contacts Beryllium copper,gold plated Insulators PTFE Crimp ferrules copper alloy,nickel plated Gaskets Silicone rubber Temperature range -40~+90℃
