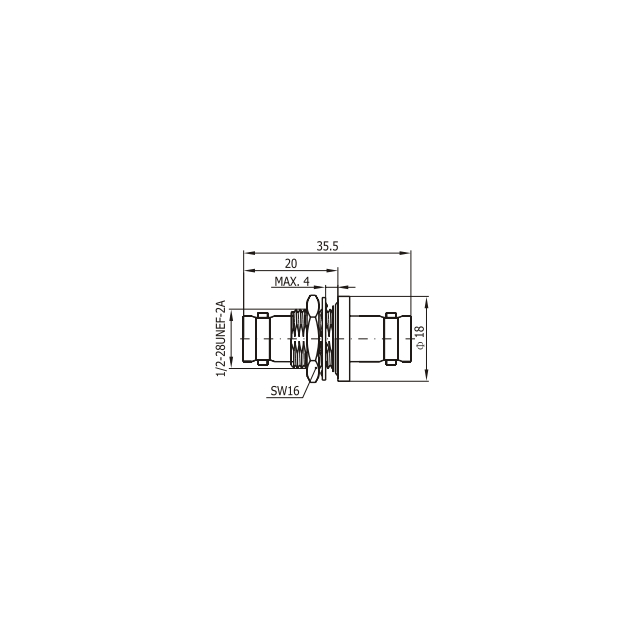

GLBNC-763

Frequency Range(GHz) 0-1 Characteristic impedance(ohm) 75 VSWR ≤1.30 Insulation resistance ≥5000MΩ Dielectric Withstanding voltage 1500V(rms) Disengage force ≥0.6N Contact resistance Center conductor ≤1.5mΩ Outer conductor ≤1mΩ Connector BNC Length(mm) Ф18*35.5 Durability 500 Cycles MATERIAL AND PLATING Lighting protection DC grounding Body Brass,nickel plated Male center contacts Brass,gold plated Female center contacts Beryllium copper or phosphor bronze ,gold plated Insulators PTFE Crimp ferrules copper alloy,nickel plated Temperature range -65~+165℃
