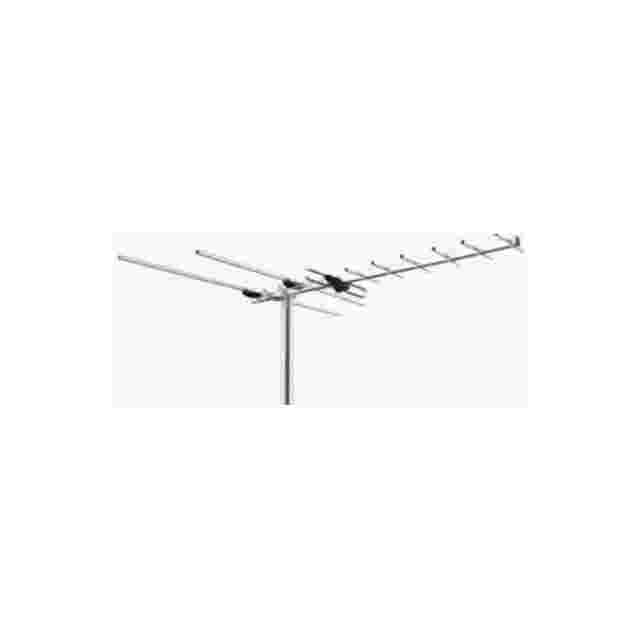

GLAV-27UV

No.of Elements 9
Channels Ch.5-12
Ch.21-69
Frequency(Mhz) 174-230
470-862
Antenna Gain(dBi) 4-6
7.5-11
Beam Width H/V(°) H85 V105
H55 V75
Front-back?Ratio(dB) 7-11
10-15
Impedance(Ω) 75
Antenna Length(mm) 805
Reception Distance(Mile) 45
Antenna Carrier(mm) 18*18

EMAIL

No.of Elements 9 Channels Ch.5-12 Ch.21-69 Frequency(Mhz) 174-230 470-862 Antenna Gain(dBi) 4-6 7.5-11 Beam Width H/V(°) H85 V105 H55 V75 Front-back?Ratio(dB) 7-11 10-15 Impedance(Ω) 75 Antenna Length(mm) 805 Reception Distance(Mile) 45 Antenna Carrier(mm) 18*18
