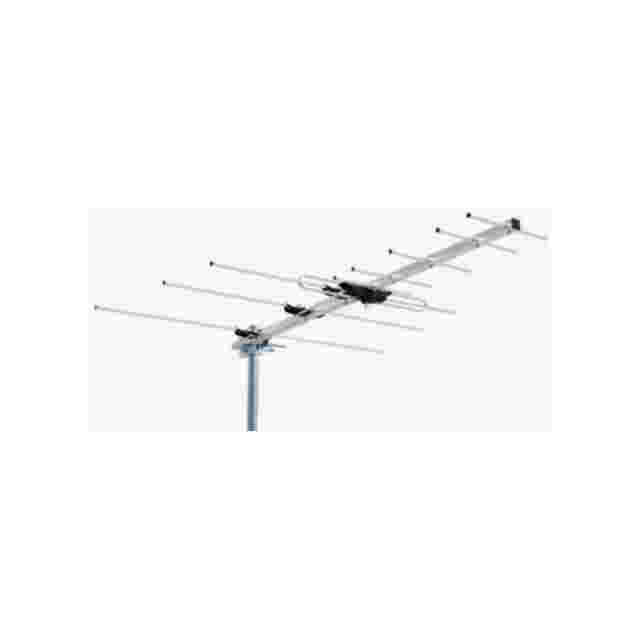

GLAV-24UV

No.of Elements 9
Channels Ch.5-12
Ch.21-69
Frequency(Mhz) 174-230
470-862
Antenna Gain(dBi) 4-6
7-10
Beam Width H/V(°) H80 V100
H50 V60
Front-back?Ratio(dB) 7-12
10-15
Impedance(Ω) 75
Antenna Length(mm) 1045
Reception Distance(Mile) 40
Antenna Carrier(mm) 18*18

EMAIL

No.of Elements 9 Channels Ch.5-12 Ch.21-69 Frequency(Mhz) 174-230 470-862 Antenna Gain(dBi) 4-6 7-10 Beam Width H/V(°) H80 V100 H50 V60 Front-back?Ratio(dB) 7-12 10-15 Impedance(Ω) 75 Antenna Length(mm) 1045 Reception Distance(Mile) 40 Antenna Carrier(mm) 18*18
