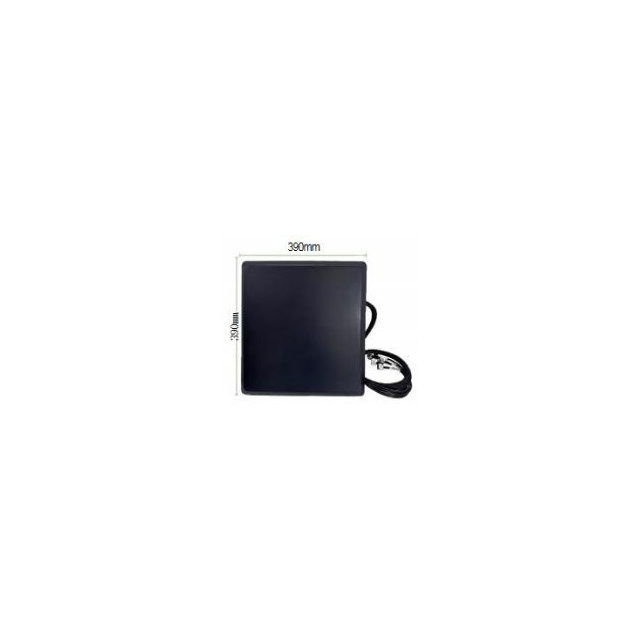

GL9058H614

Electrical Specifications Frequency Range (MHz) 915-935 1160-1280 1560-1620 2400-2500 5725-5850 Gain (dBi) 5±1/8±1/12±1/14±1 Polarization 2*Vertical / 2*Vertical + Horizontal VSWR ≤1.8/≤2.0 F/B Ratio ≥15/≥20/≥23 Maximum input power (W) 100 Impedance (Ω) 50 Mechanical Specifications Dimensions (mm) 390*390*50MM Antenna weight (Kg) 1.1 Radome color Black and white Input connector type 6*N male Environmental indicators Usage scenarios Outdoor Operating temperature (℃) -40 to +70 Humidity range (%) 5 to 95
