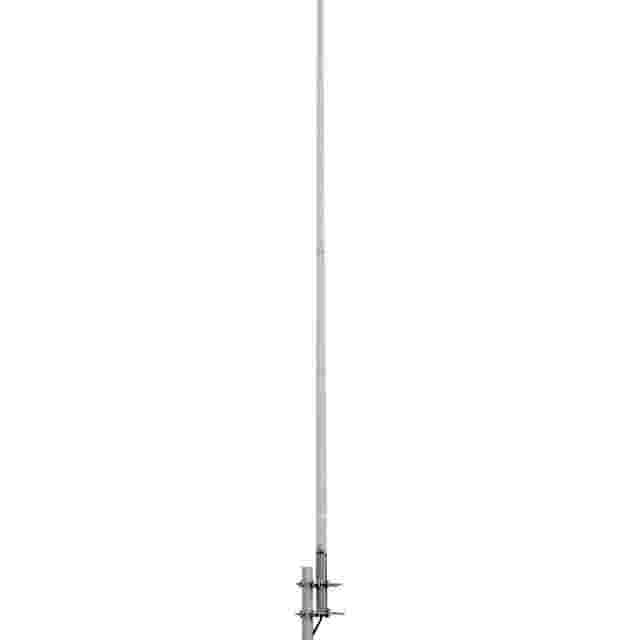

GL400UQ10

Frequency-MHz 400-480
Bandwidth-MHz 25
Gain-dBi 10.2
Vertical Beamwidth-o 10
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 200
Length-m 4.0
Weight-kg 4.2
Rated Wind Velocity-m/s 55
Connector 7/16DIN Female
Remarks Fiberglass
