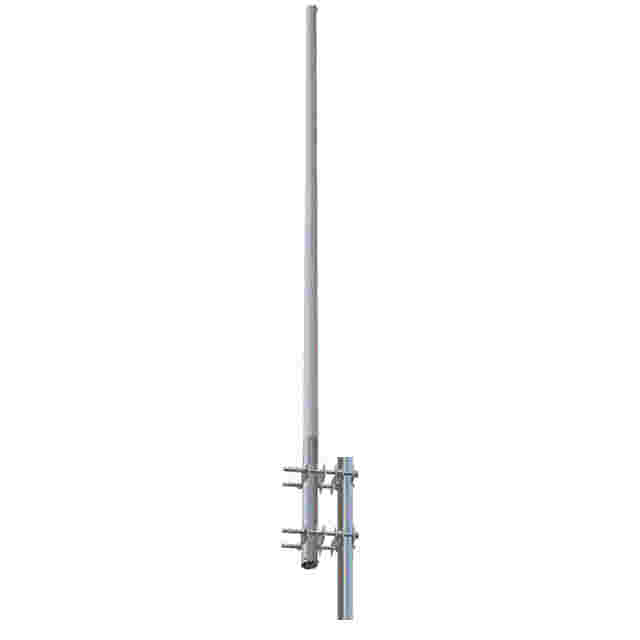

GL400Q9

Frequency-MHz 400-425/406-430/425-450/450-475
Bandwidth-MHz 25
Gain-dBi 9
Vertical Beamwidth-o 13
VSWR ≤1.5
Nominal Impedance-Ω 50
Polarization Vertical
Maximum Power-W 500
Length-m 3.2
Weight-kg 5.5
Rated Wind Velocity-m/s 60
Connector 7/16DIN Female
Remarks Fiberglass High Power PIM≤-150dBc

EMAIL

Frequency-MHz 400-425/406-430/425-450/450-475 Bandwidth-MHz 25 Gain-dBi 9 Vertical Beamwidth-o 13 VSWR ≤1.5 Nominal Impedance-Ω 50 Polarization Vertical Maximum Power-W 500 Length-m 3.2 Weight-kg 5.5 Rated Wind Velocity-m/s 60 Connector 7/16DIN Female Remarks Fiberglass High Power PIM≤-150dBc
