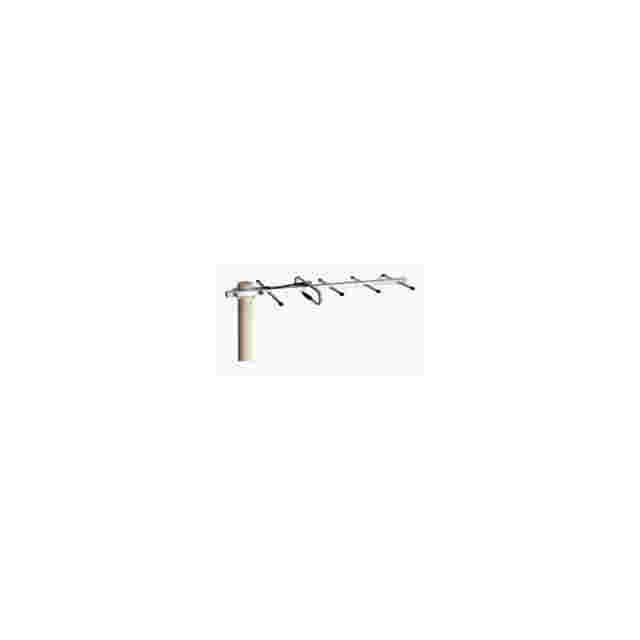

GL1200Y5

Frequency(Mhz) 1060-1200 Bandwidth(MHz) 140 Gain(dBi) 9 Vertical?Beamwidth(°) 54 Horizontal Beamwidth(°) 48 F/B Ratio(dB) ≥14 VSWR ≤1.5 Nominal?Impedance(Ω) 50 Polarization Vertical or Horizontal Maximum Power(W) 100 Dimensions(m) 0.4 Weight(kg) 0.4 Connector N Female or Customization Rated Wind Velocity(m/s) 60 Mounting Mast Diameter(mm) φ30-50
