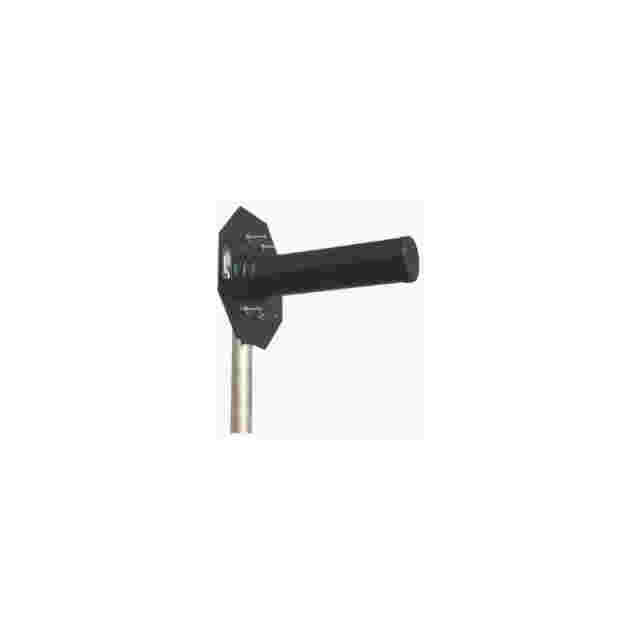

GL1200BH

Frequency(Mhz) 1000-1300
Bandwidth(MHz) 300
Gain(dBi) 14
Beamwidth(°) 35
F/B Ratio(dB) ≥20
VSWR ≤1.5
Nominal?Impedance(Ω) 50
Polarization Circle Polarization
Maximum Power(W) 100
Dimensions(m) 0.6
Weight(kg) 1.5
Connector N Female or Customization
Rated Wind Velocity(m/s) 60

EMAIL

Frequency(Mhz) 1000-1300 Bandwidth(MHz) 300 Gain(dBi) 14 Beamwidth(°) 35 F/B Ratio(dB) ≥20 VSWR ≤1.5 Nominal?Impedance(Ω) 50 Polarization Circle Polarization Maximum Power(W) 100 Dimensions(m) 0.6 Weight(kg) 1.5 Connector N Female or Customization Rated Wind Velocity(m/s) 60
