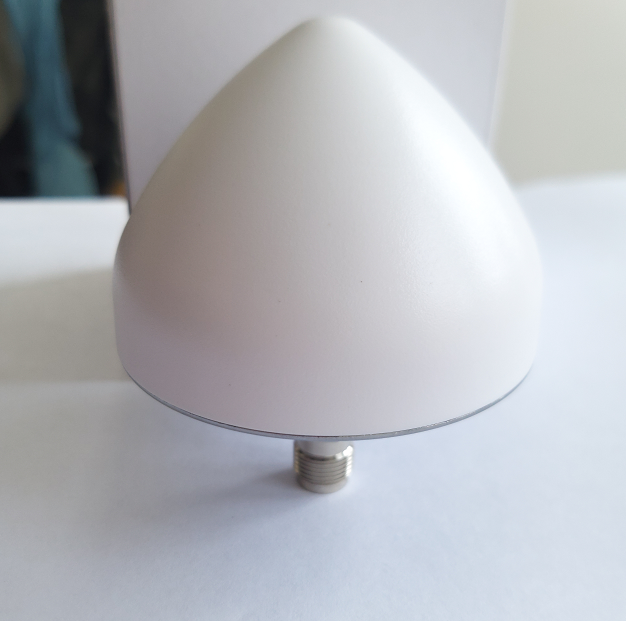

GL-DY225S GNSS Active Antenna

  • P/N: GL-DY225S
  • Gain:28±2dB/30±2dB
  • Connector: TNC-K
  • Freq: 1559.052~ 1610MHz/1164~ 1239MHz
  • Product description: GL-DY225S GNSS Active Antenna
  • INQUIRY



FOB Port: Shanghai or shenzhen

MOQ: 500PCS


Payment: TT,Paypal,Westen Union



Download Info: here

Item

Specifications

Antenna

Frequency Range

1559.052~ 1610MHz

1164~ 1239MHz

Polarization

RHCP

Axial Ratio

3dB(zenith)

V.S.W.R

2.0

Peak Gain

3dBic

Impedance

50Ω

Horizontal Coverage Angle

360

Vertical Coverage Angle

5~90

LNA

Gain

B1/L1/G1/E1/E228±2dB

B2/L2/L5//E5a/E5b 30±2dB

Noise Figure

1.5dB

Pass band Fluctuation

±1.5dB

Supply Voltage

3.3~ 12V DC

Current Consumption

50mA

V.S.W.R

2.0

Mechanical

Connector

TNC-K

Dimension

Φ66.5mm

Weight

150g

Environmental

Operating Temperature

-40C~+85C

Storage temperature

-40C~+85C

Relative Humidity

Up to 95% (Non condensing)

Ingress Protection

IP67



FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: one year for antennas and half a year for assembly cables and Connectors
