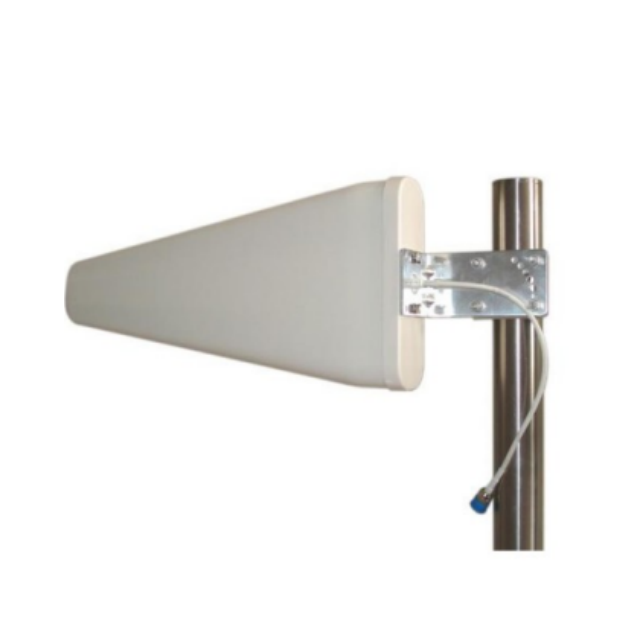

The GL-1500AN12 is a 12dBi panel antenna with wide beam coverage (50°H/40°V), designed for stable and efficient wireless communication in the 1400-1550MHz band, ideal for outdoor and industrial applications.
Item | Index |
PN | GL-1500AN12 |
Frequency Range (MHz) | 1400-1550 |
Bandwidth (MHz) | 150 |
Gain (dBi) | 12 |
V.S.W.R | ≤1.5 |
Horizontal Beamwidth (⁰) | 50 |
Vertical Beamwidth (⁰) | 40 |
Nominal Impedance (Ω) | 50 |
Polarization | Vertical |
Max power input（W） | 100 |
Length (mm) | 450*210*65 |
Weight (kg) | 1 |
Connector | N female or Customization |
Remarks | Poles mounting |
Product Introduction
High-performance plate antenna, covering the 1400-1550 MHz frequency band, with a bandwidth of up to 150 MHz.
With a gain of 12 dBi, a horizontal beam width of 50°, and a vertical beam width of 40°, it provides extensive and stable signal coverage.
It adopts a vertical polarization design and is suitable for various communication scenarios, with strong signal penetration.
The standing wave ratio is ≤1.5, the impedance is 50 Ω, the maximum input power is 100W, and it supports high-power stable operation.
The dimensions are 450×210× 65mm, the weight is 1kg, it is equipped with a standard N-type female connector and supports rod installation.
Usage scenarios
It is applicable to wireless communication base stations, relay stations and signal enhancement systems.
It can be used in industrial Internet of Things, remote monitoring and intelligent security systems.
It is suitable for signal coverage and transmission in complex terrains such as mountainous areas, forests and mining areas.
It is suitable for wireless network coverage in areas such as campuses, parks, and factory zones.
It can be installed on poles, walls or brackets, and supports long-term outdoor deployment.
FAQ
Q1: What is the beam width of this antenna? What is the coverage?
A1: The horizontal beam width is 50° and the vertical beam width is 40°, providing extensive and uniform signal coverage.
Q2: Is custom interface supported?
A2: Yes, it comes standard with an N-type female connector and also supports interface customization, which can be adjusted according to requirements.
Q3: What are the dimensions and installation methods of the antenna?
A3: Dimensions: 450×210× 65mm, weight: 1kg, suitable for pole installation.
Q4: What is the maximum input power? Is it suitable for high-power scenarios?
A4: The maximum input power is 100W, suitable for medium and high power communication systems.
Q5: Is it suitable for outdoor environments?
A5: Yes, it has a sturdy structure and is suitable for outdoor installation. It is recommended to use it with waterproof accessories.
Q6: Are other frequency bands supported?
A6: Custom frequency bands are supported. If you need other frequency bands, please contact us for customization.
