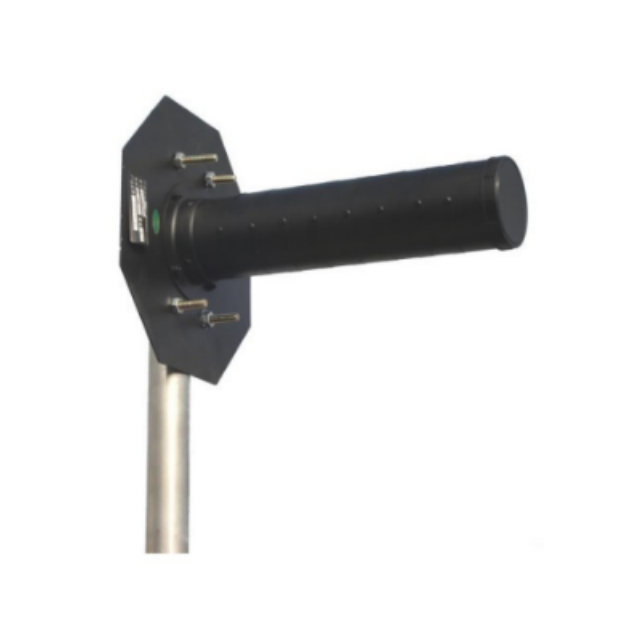

GL-1500AHL High-Gain Mobile Antenna

Product Introduction

High-performance mobile antenna, covering the 1400-1550 MHz frequency band, with a bandwidth of up to 150 MHz.

With a gain of up to 14 dBi and a vertical beam width of 35°, it provides stronger directional signal coverage.

It adopts a circular polarization design to reduce multipath interference and enhance signal stability.

The standing wave ratio is ≤1.5, the impedance is 50 Ω, the maximum input power is 100W, and it supports efficient transmission.

The length is 410mm, the weight is 1kg, and it is equipped with an N-type female connector, suitable for pole installation.

Usage scenarios

It is applicable to long-distance mobile communication, vehicle-mounted base stations and emergency communication systems.

It can be used in unmanned aerial vehicle image transmission, remote monitoring and wireless video transmission systems.

Suitable for signal relay and coverage in complex environments such as mountainous areas, at sea, and along borders.

It is suitable for wireless test equipment, communication experiments and signal research scenarios.

It can be installed on poles, vehicle roofs or fixed brackets, and is suitable for long-term outdoor deployment.

FAQ

Q1: What is the gain of this antenna? Is it suitable for long-distance communication?

A1: With a gain of 14 dBi and a vertical beam width of 35°, it is highly suitable for long-distance directional communication.

Q2: What polarization method does the antenna adopt? What are the advantages?

A2: It adopts a circular polarization design, which can effectively reduce multipath interference of signals and enhance the stability of reception.

Q3: Which interfaces are supported? Is it waterproof?

A3: Standard N-type female connector interface, suitable for pole installation. It is recommended to use it outdoors with a waterproof kit.

Q4: What is the maximum input power?

A4: The maximum input power is 100W, suitable for medium and high power communication systems.

Q5: What are the dimensions and weight of the antenna?

A5: It is 410mm in length and weighs 1kg, making it easy to install and carry.

Q6: Is custom frequency band or interface supported?

A6: Customized requirements are supported, including frequency bands, interfaces and installation methods. Please contact us for consultation.
