Magnet Antenna

  • Strong  Magnet Antenna GL-DY062709
  • Strong  Magnet Antenna GL-DY062709
  • Strong  Magnet Antenna GL-DY062709
Strong  Magnet Antenna GL-DY062709Strong  Magnet Antenna GL-DY062709Strong  Magnet Antenna GL-DY062709

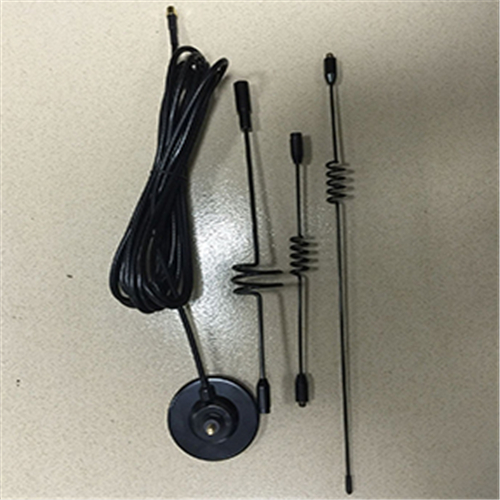

Strong Magnet Antenna GL-DY062709

  • P/N: GL-DY062709
  • Cable: LMR195,5M
  • Dim: 70*925mm
  • Connector: FME female
  • Product description: Data and Signal transmission
  • INQUIRY



FOB Port: Shanghai or Shenzhen
MOQ: 100PCS
Supply ability:5000PCS/DAY
Payment: TT,Paypal,Westen Union before shipment


Download Info: here



GSM Magnet Antenna

GL-DY062709

Electrical Index

Frequency-MHz

824-960/1710-2170

VSWR

1.5

Nominal Impedance-Ω

50

Polarization

Vertical

Gain-dBi

9

Mechanical Index

Cable Length

LMR195,5m

Connector

FME female

Antenna Dimension-mm

70*925

Installation Way

Magnet

Environmentally Friendly

ROHS Compliant

Temperature-

-40~+85

Humidity-

595


FAQ

Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A:T/T, Paypal, western union etc.


Q:May I visit your company?

A: Sure, welcome any time.


Q: How long of the warranty?

A: 1 year for antennas and half a year for assembly cables and Connectors
