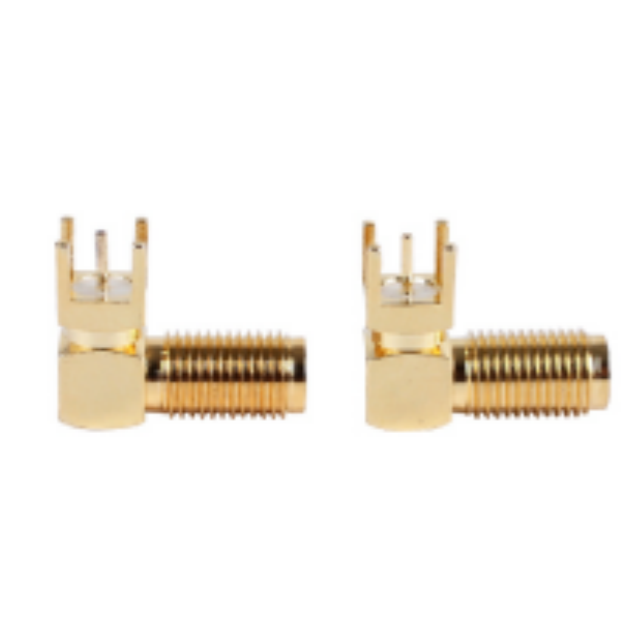

The GL-SMAC4 SMA Type Connector boasts 7GHz frequency, 50Ω impedance, and VSWR 1.15. With ≤-160dBc PIM, ≥500 mating cycles, and -55℃ to +155℃ tolerance, it features brass contacts for stable, durable high-frequency signal transmission in harsh industrial/aerospace scenarios.
Frequency Range(GHz) | 7 |
Impedance(ohm) | 50 |
VSWR | 1.15 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф5.3*17.13.5 |
Product Introduction
1. Operates in 7GHz frequency range with 50Ω impedance, ensuring stable high-frequency signal transmission.
2. Features ultra-low VSWR (1.15) and 3rd-order PIM ≤-160dBc @ 2x20W, minimizing signal interference.
3. Durable construction: Brass CuSnZn outer contact + Ag-plated center contact for excellent conductivity and corrosion resistance.
4. Supports ≥500 mating cycles and 0.7-1.1Nm recommended coupling torque (max 1.7Nm) for reliable connection.
5. Wide temperature tolerance (-55℃ to +155℃) and 2500V max test voltage, suitable for harsh environments.
Application Scenarios
1. Telecommunication base stations (4G/5G) for signal transmission and reception systems.
2. Radar and satellite communication equipment requiring high-frequency stability.
3. Industrial test instruments (signal generators, network analyzers) for precise measurements.
4. Aerospace and military electronics operating in extreme temperature conditions.
5. RF modules and wireless communication devices (Wi-Fi, Bluetooth) needing low interference.
FAQ
Q: What is the frequency range of the GL-SMAC4 connector?
A: It supports a frequency range of up to 7GHz, ideal for high-frequency applications.
Q: What is the VSWR value of this SMA connector?
A: The VSWR is 1.15, ensuring minimal signal reflection and efficient transmission.
Q: How many mating cycles can the connector withstand?
A: It supports ≥500 mating cycles, offering long-term reliability in repeated use.
Q: What is the recommended coupling torque for installation?
A: The recommended torque is 0.7-1.1Nm (max 1.7Nm) for secure connection.
Q: What materials are used for the contacts?
A: Outer contact: Brass CuSnZn; Center contact: Brass Ag-plated for superior conductivity.
Q: Is this connector suitable for extreme temperatures?
A: Yes, it operates in -55℃ to +155℃, adapting to harsh industrial/aerospace environments.
