4G/LTE Antennas

  • GSM/CDMA/2G/3G/4G/5G Antenna  GL-DY07271
  • GSM/CDMA/2G/3G/4G/5G Antenna  GL-DY07271
  • GSM/CDMA/2G/3G/4G/5G Antenna  GL-DY07271
GSM/CDMA/2G/3G/4G/5G Antenna  GL-DY07271GSM/CDMA/2G/3G/4G/5G Antenna  GL-DY07271GSM/CDMA/2G/3G/4G/5G Antenna  GL-DY07271

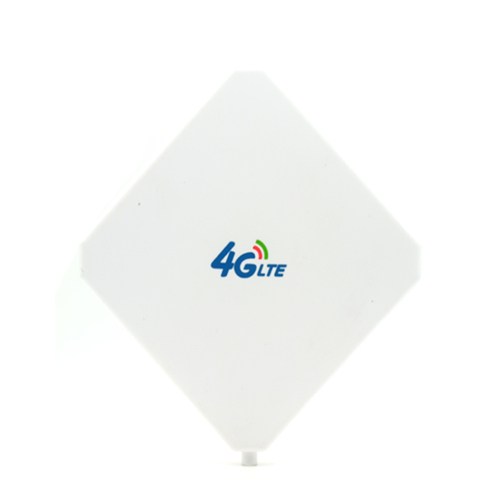

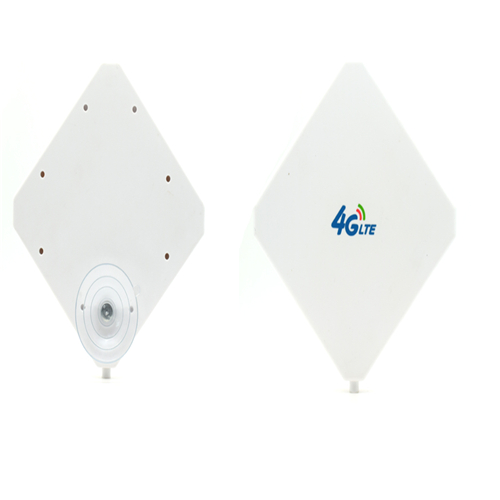

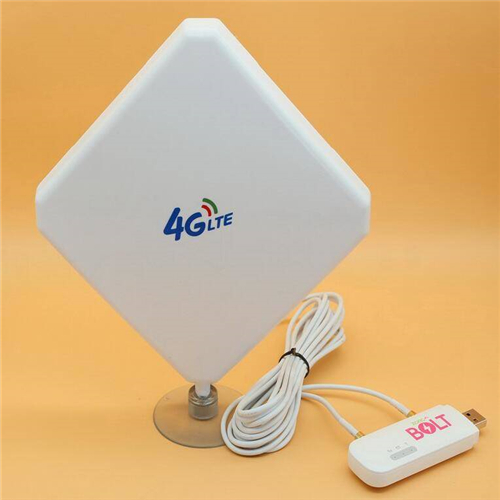

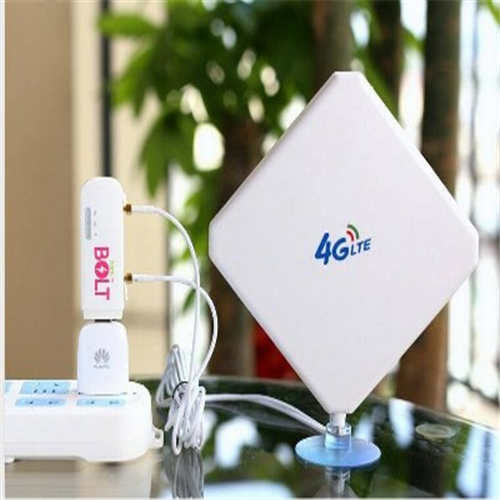

GSM/CDMA/2G/3G/4G/5G Antenna GL-DY07271

  • P/N: GL-DY07271
  • panel antenna
  • desk antenna
  • Dimension: 14.5*14.5*1.5cm
  • Product description: 8dBi GSM/CDMA/2G/3G/4G/5G Antenna
  • INQUIRY

FOB Port: Shanghai or Shenzhen

MOQ: 100PCS

Supply ability:500PCS/DAY

Payment: TT,Paypal,Western Union before shipment


Download Info: here

Type

GSM/CDMA/2G/3G/4G/5G Antenna

No.

GL-DY07271

Electrical Date

Frequency Range

700-2700MHz

Radiation Pattern

Omni directional

Impedance

50Ω

Gain

8dbi

Efficiency

>50%

V.S.W.R.

≤1.5

Polarization

 Vertical polarization

Mechanical Data

Dimension

14.5*14.5*1.5cm

Mounting

Screw

Material

Plastic

Connector

SMA

Color

White

Operating Temp

-40 ~ +85℃



FAQ


Q: Can I get one sample?

A: Yes, sample is available.


Q: Have GNSS antenna 100% assembles well in stock?

A: No, all GNSS antenna will be newly assembled according to your orders including the samples.


Q: What's the delivery time?

A: 3-5 working days for the sample, 10-15 working days for quantity below 5K,.


Q: Could i use my own LOGO or design on goods?

A: Yes, customized logo and design on mass production are available.


Q: What's the payment term?

A: T/T, Paypal, western union etc.


Q: May I visit your company?

A:  Sure, welcome any time.


Q: How long is the warranty?

A: 1 year for antennas and half a year for assembly cables and Connectors
